STM32H7B3I-DK - Getting the SWV ITM To work

[Garnett.Robert]

Hi,



I noticed a few people were having problems getting the SWV Console to work.  I had the same trouble with the STM32H7B3I-DK. Trace would work, but neither the ITM or the Profiler would produce anything.  I fixed it by making the clock frequency setting halsf of the SytemCoreClock frequency which was maxed out at 280 MHz.

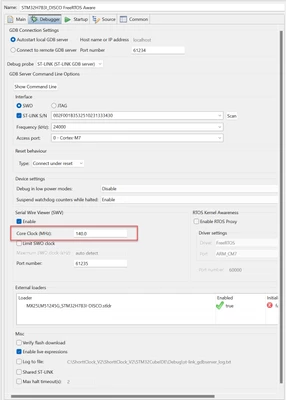

Setting the Core Clock MHz to 140 did the trick:



[Semer CHERNI]

Hello @Garnett.Robert

First let me thank you for posting.

In fact the STM32H7B the traceportclk can take one of 4 clock sources:

• HSI
• CSI
• HSE
• PLL1 R

If the project is started from the MCU selector, the default value is HSI and if the project is started from the board selector the default value is PLL1R.

BR,
Semer.
