STM32WL55CCUx debug mode issue in STM32CubeIDE v1.4.1

[Somya]

I am using STM32Cube IDE version 1.4.1 where I'm debugging 1st the CM4 Core which is getting debugged and then I tried to debug CM0+ core which is not going into debug mode and showing the error :

Target unknown error 32

Error in initializing ST-LINK device.

Reason: Unknown. Please check power and cabling to target.

I tried this too
Launching the configurations
Launch the Cortex®‑M4 configuration to download both the Cortex®‑M0+ and Cortex®‑M4 images.
Resume the Cortex®‑M4 core until the C2BOOT bit is set in power control register 4 (PWR_CR4) to enable
the Cortex®‑M0+.
Launch the Cortex®‑M0+ configuration using the arrow next to the debug icon. The Cortex®‑M0+ is in the
running mode and the user can halt it after the debugger is started.

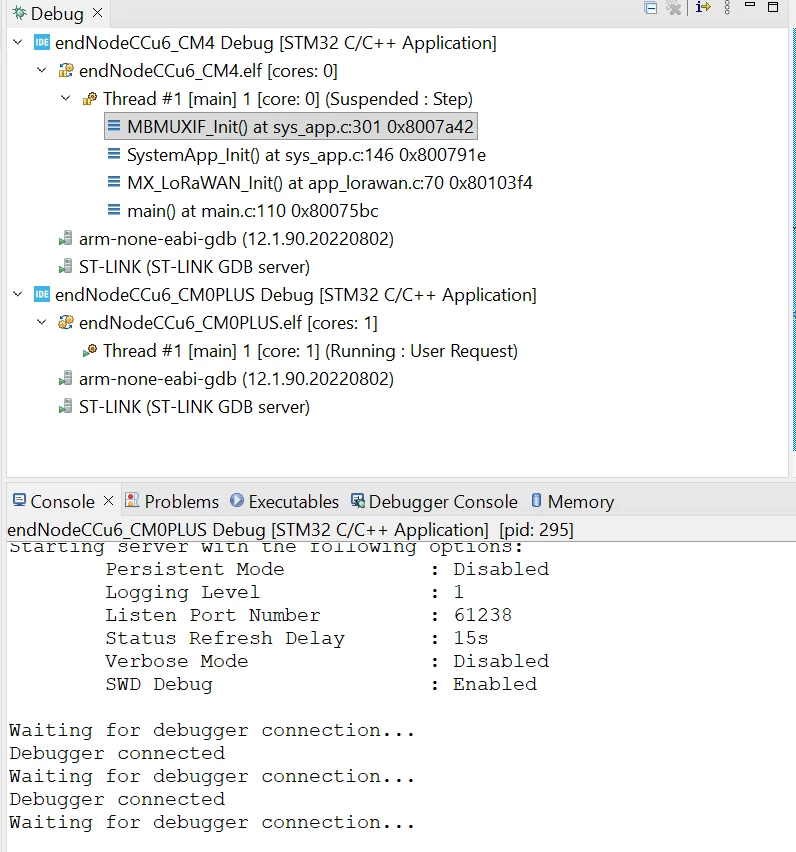

The core CM4 got into debugged mode but then the Core CM0+ is showing :

Debugger Connected
Waiting for debugger connection...

Debugger Connected
Waiting for debugger connection....

Debugger Connected
Waiting for debugger connection...


Why is it so?
Where is the problem.

[Souhaib MAZHOUD]

Hello @Somya

Try to use a new version of STM32CubeIDE, AFAIK the STM32WL series is supported since version 1.5.0 of STM32CubeIDE

KR, Souhaib

[Somya]

TRIED VERSION 1.19.0 AND 1.14.1
BUT STILL IT DID NOT WORK.
IS THERE ANY LINE WHICH NEEDS TO BE COMMENTED BELOW :

HAL_DBGMCU_DisableDBGSleepMode();
HAL_DBGMCU_DisableDBGStopMode();

HAL_DBGMCU_DisableDBGStandbyMode();


OR
AS THE CM4 GOES INTO DEBUG MODE. WHILE DEBUGGING CM4 , IS THERE ANY LINE WHICH NEEDS TO BE COMMENTED OR BREAKPOINTS NEEDS TO BE SET AS AFTER GOING INTO THIS FUNCRION

MBMUXIF_Init()
WHICH STATES :

static void MBMUXIF_Init(void)

{

/* USER CODE BEGIN MBMUXIF_Init_1 */



/* USER CODE END MBMUXIF_Init_1 */

FEAT_INFO_List_t *p_cm0plus_supported_features_list;

int8_t init_status;



APP_LOG(TS_ON, VLEVEL_H, "\r\nCM4: System Initialization started \r\n");



init_status = MBMUXIF_SystemInit();

if (init_status < 0)

{

Error_Handler();

}



/* start CM0PLUS */

/* Note: when debugging in order to connect with the debugger CPU2 shall be start using workspace CM4 starts CM0PLUS */

/* On the other hand is up to the developer make sure the CM0PLUS debugger is run after CM4 debugger */

HAL_PWREx_ReleaseCore(PWR_CORE_CPU2);



/* CM4 has started and it has reset the mailbox and initialized the MbMux; */

/* once CM0PLUS is also initialized it send a SYS notification */

MBMUXIF_SetCpusSynchroFlag(CPUS_BOOT_SYNC_ALLOW_CPU2_TO_START);



APP_LOG(TS_ON, VLEVEL_H, "CM4: System Initialization done: Wait for CM0PLUS \r\n");



MBMUXIF_WaitCm0MbmuxIsInitialized();



APP_LOG(TS_ON, VLEVEL_H, "CM0PLUS: System Initialization started \r\n");



p_cm0plus_supported_features_list = MBMUXIF_SystemSendCm0plusInfoListReq();

MBMUX_SetCm0plusFeatureListPtr(p_cm0plus_supported_features_list);



APP_LOG(TS_ON, VLEVEL_H, "System Initialization CM4-CM0PLUS completed \r\n");



init_status = MBMUXIF_SystemPrio_Add(FEAT_INFO_SYSTEM_NOTIF_PRIO_A_ID);

if (init_status < 0)

{

Error_Handler();

}

MBMUXIF_SetCpusSynchroFlag(CPUS_BOOT_SYNC_RTC_REGISTERED);

APP_LOG(TS_ON, VLEVEL_H, "System_Priority_A Registration for RTC Alarm handling completed \r\n");



init_status = MBMUXIF_TraceInit();

if (init_status < 0)

{

Error_Handler();

}

APP_LOG(TS_ON, VLEVEL_H, "Trace registration CM4-CM0PLUS completed \r\n");



init_status = MBMUXIF_LoraInit();

if (init_status < 0)

{

Error_Handler();

}

APP_LOG(TS_ON, VLEVEL_H, "Lora registration CM4-CM0PLUS completed \r\n");



/* USER CODE BEGIN MBMUXIF_Init_Last */



/* USER CODE END MBMUXIF_Init_Last */

}


IS THERE ANY LINE WHICH NEEDS TO BE COMMENTED HERE.
AS THE CORE DOES NOT GETS DEBUGGED AFTER THIS.
I HAVE SET BREAKPOINT HERE : p_cm0plus_supported_features_list = MBMUXIF_SystemSendCm0plusInfoListReq();


WHERE IS THE ISSUE?



[Somya]

TRIED STM32CUBEIDE VERSION 1.14.1 AND 1.19.0 TOO.
