Stuck in xQueueSemaphoreTake()

[debug]

Hi,

I would like to setup a system with a telnet server and I'm trying to follow this guide: https://controllerstech.com/stm32-ethernet-4-tcp-server/ but unfortunately, upon launch, the system gets stuck at line1438 in queue.c:

/* Cannot block if the scheduler is suspended. */

#if ( ( INCLUDE_xTaskGetSchedulerState == 1 ) || ( configUSE_TIMERS == 1 ) )

{

configASSERT( !( ( xTaskGetSchedulerState() == taskSCHEDULER_SUSPENDED ) && ( xTicksToWait != 0 ) ) );

}

#endif

it's a bit odd because it appears like when I don't change the MEM_SIZE variable but leave it its default (1600) it appears to not be stuck after creation of the config but once I change it to 10*1024 (as it's shown in the link above) I do not seem to be able to undo it anymore but it keeps getting stuck on call to MX_LWIP_Init(). Why is this I'm wondering and how can I fix it?

[Bob S]

The code gets 'stuck" in queue.c because some function is waiting for a queue (or mutex) with a non-zero "wait" param BEFORE the FreeRTOS scheduler has started (osKernelStart() called).  That is not allowed - as the comment says, tasks cannot be suspended if the scheduler is not (yet) running.

Where in MX_LWIP_Init() is the code getting "stuck"?  Use the debugging tools, trace/step through the function.

If you are using dynamic allocation for your tasks, mutexes, queues, etc. then you definitely need to set MEM_SIZE much larger than the default 1600.  I don't know what you mean by "do not seem to be able to undo it anymore".

[debug]

Hm? I've set MEM_SIZE to 10240 B now, would that be sufficient?
My application is empty at the moment, I just configured the empty framework in CubeIDE. I haven't modifed anything in the init sequence and my StartDefaultTask() function only looks like this:

void StartDefaultTask(void const * argument)

{

/* init code for LWIP */

MX_LWIP_Init();

/* USER CODE BEGIN 5 */

/* Infinite loop */

for(;;)

{

osDelay(1);

}

/* USER CODE END 5 */

}

the init sequence is:

1. HAL_Init()
2. SystemClock_Config();
3. MX_GPIO_Init();

4. osThreadDef(defaultTask, StartDefaultTask, osPriorityNormal, 0, 128);

   defaultTaskHandle = osThreadCreate(osThread(defaultTask), NULL);

5. osKernelStart();

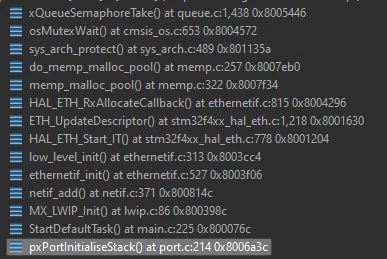

and the call stack when it hangs looks like this:

What I see is happening is:

1. MX_LWIP_Init() calls
2. netif_add() calls
3. init(netif) calls
4. low_level_init(netif) calls
5. HAL_ETH_Start_IT(&heth) calls
6. ETH_UpdateDescriptor(heth) calls
7. HAL_ETH_RxAllocateCallback(&buff) calls
8. LWIP_MEMPOOL_ALLOC(RX_POOL) calls
9. do_memp_malloc_pool(desc) calls
10. SYS_ARCH_PROTECT(old_level) calls
11. osMutexWait(lwip_sys_mutex, osWaitForever) calls<-- problem is invoked from here
12. if (xSemaphoreTake(mutex_id, ticks) != pdTRUE) calls
13. configASSERT( !( ( xTaskGetSchedulerState() == taskSCHEDULER_SUSPENDED ) && ( xTicksToWait != 0 ) ) ) HANGS

any hints on how I can fix this? I've attacghed the empty project as *.7z file

[Bob S]

Do you call osKernelInitialize()?

[MohanKrish]

Please check the stack size of the thread . .
