unable to run the readily given example from mx for stm326570-dk nx_webserver_project

[MownishBugatha]

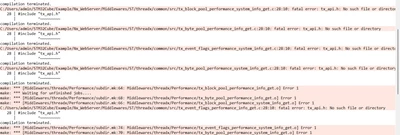

I am trying to build the readily given Nx_webserver project , i had selected the given example and just change the tool chain to STMcube IDE inorder to build the project with the cube ide after redirection to the cube IDE i just click on the build , it ends up with the following error:



Spoiler

12:03:20 **** Build of configuration Debug for project Nx_WebServer_FSBL ****

make -j8 all

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_block_pool_performance_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_block_pool_performance_info_get.d" -MT"Middlewares/threadx/Performance/tx_block_pool_performance_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_block_pool_performance_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_block_pool_performance_system_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_block_pool_performance_system_info_get.d" -MT"Middlewares/threadx/Performance/tx_block_pool_performance_system_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_block_pool_performance_system_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_byte_pool_performance_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_byte_pool_performance_info_get.d" -MT"Middlewares/threadx/Performance/tx_byte_pool_performance_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_byte_pool_performance_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_byte_pool_performance_system_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_byte_pool_performance_system_info_get.d" -MT"Middlewares/threadx/Performance/tx_byte_pool_performance_system_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_byte_pool_performance_system_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_event_flags_performance_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_event_flags_performance_info_get.d" -MT"Middlewares/threadx/Performance/tx_event_flags_performance_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_event_flags_performance_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_event_flags_performance_system_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_event_flags_performance_system_info_get.d" -MT"Middlewares/threadx/Performance/tx_event_flags_performance_system_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_event_flags_performance_system_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_mutex_performance_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_mutex_performance_info_get.d" -MT"Middlewares/threadx/Performance/tx_mutex_performance_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_mutex_performance_info_get.o"

arm-none-eabi-gcc "C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_mutex_performance_system_info_get.c" -mcpu=cortex-m55 -std=gnu11 -g3 -DRTL8211_INIT_TO=10000 -DETH_PHY_1000MBITS_SUPPORTED -DDEBUG -DUSE_HAL_DRIVER -DSTM32N657xx -DFX_INCLUDE_USER_DEFINE_FILE -DNX_INCLUDE_USER_DEFINE_FILE -DTX_INCLUDE_USER_DEFINE_FILE -DTX_SINGLE_MODE_SECURE=1 -c -I../../../Middlewares/ST/netxduo/ports/cortex_m55/gnu/inc -I../../../Middlewares/ST/threadx/ports/cortex_m55/gnu/inc -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -mcmse -MMD -MP -MF"Middlewares/threadx/Performance/tx_mutex_performance_system_info_get.d" -MT"Middlewares/threadx/Performance/tx_mutex_performance_system_info_get.o" --specs=nano.specs -mfpu=fpv5-d16 -mfloat-abi=hard -mthumb -o "Middlewares/threadx/Performance/tx_mutex_performance_system_info_get.o"

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_block_pool_performance_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_block_pool_performance_system_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_byte_pool_performance_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_event_flags_performance_system_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_byte_pool_performance_system_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

make: *** [Middlewares/threadx/Performance/subdir.mk:64: Middlewares/threadx/Performance/tx_block_pool_performance_info_get.o] Error 1

make: *** Waiting for unfinished jobs....

make: *** [Middlewares/threadx/Performance/subdir.mk:68: Middlewares/threadx/Performance/tx_byte_pool_performance_info_get.o] Error 1

make: *** [Middlewares/threadx/Performance/subdir.mk:66: Middlewares/threadx/Performance/tx_block_pool_performance_system_info_get.o] Error 1

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_event_flags_performance_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

make: *** [Middlewares/threadx/Performance/subdir.mk:74: Middlewares/threadx/Performance/tx_event_flags_performance_system_info_get.o] Error 1

make: *** [Middlewares/threadx/Performance/subdir.mk:70: Middlewares/threadx/Performance/tx_byte_pool_performance_system_info_get.o] Error 1

make: *** [Middlewares/threadx/Performance/subdir.mk:72:

Spoiler



Middlewares/threadx/Performance/tx_event_flags_performance_info_get.o] Error 1

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_mutex_performance_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

C:/Users/admin/STM32Cube/Example/Nx_WebServer/Middlewares/ST/threadx/common/src/tx_mutex_performance_system_info_get.c:28:10: fatal error: tx_api.h: No such file or directory

28 | #include "tx_api.h"

| ^~~~~~~~~~

compilation terminated.

make: *** [Middlewares/threadx/Performance/subdir.mk:76: Middlewares/threadx/Performance/tx_mutex_performance_info_get.o] Error 1

make: *** [Middlewares/threadx/Performance/subdir.mk:78: Middlewares/threadx/Performance/tx_mutex_performance_system_info_get.o] Error 1

"make -j8 all" terminated with exit code 2. Build might be incomplete.



12:03:22 Build Failed. 17 errors, 0 warnings. (took 2s.319ms)

[Mahmoud Ben Romdhane]

Hello @MownishBugatha

Let me thank you for posting.

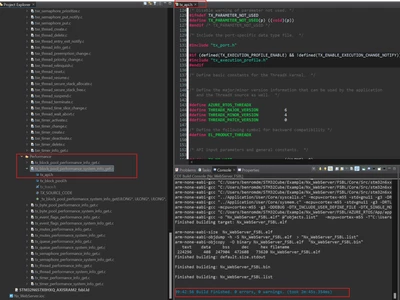

I retested the behavior described using STM32CubeMX 6.16.1, and the compilation finished successfully.

Thanks.

Mahmoud



[MownishBugatha]

Thank You Now its build for me , there are the path issues , i rectified by manually adding them to builder.
