UNIT TEST FOR STM32 ?

[fyazı.1]

Hi,

I wanna use TDD on my projects. So; I try implement CppUTest or Unity Test Frameworks but i couldn't do it. Is there anyone use this test framework on STM32CUBEIDE? What could be wrong? When i try build project , i get so many errors. (like : no such file or directory...)

if there is a tutorial for beginning TDD for STM32CubeIde , it would be so helpful.

Best Regards..

[AAgar.2]

I use unity.

The console print in the lib is an issue. Disable console prints.

File not found will just be an issue of paths. Check again.

[fyazı.1]

Hi,

Thanks for your response. Sorry i couldn't understand "console prints" exactly. Did you mention "UnityPrint" functions? Is there a #define for disable all console print functions?

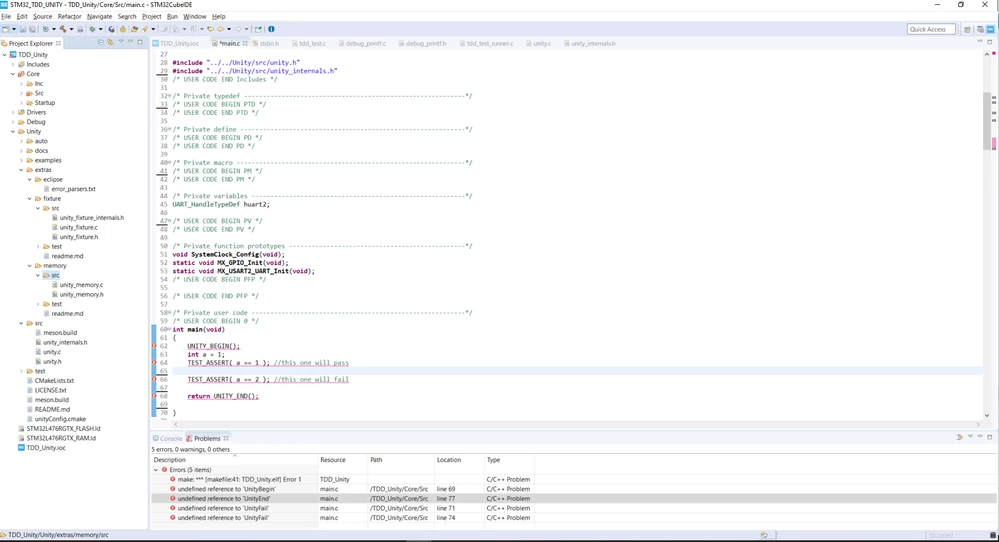

And when i add simple code i get this errors >> undefined reference to 'UnityBegin' , undefined reference to 'UnityEnd' ... . I added screenshot too.

/* USER CODE BEGIN Includes */

#include "../../Unity/src/unity.h"

#include "../../Unity/src/unity_internals.h"

/* USER CODE END Includes */

int main(void)

{

  UNITY_BEGIN();

  int a = 1;

  TEST_ASSERT( a == 1 ); //this one will pass

  TEST_ASSERT( a == 2 ); //this one will fail

  return UNITY_END();

}

[MMich.2]

I'm also very interested in integrating tests inside the STM32CubeIDE. I have asked a similar question since the UI actually shows a checkbox to add unit tests.

[EvO]

I am using cpputest and am running it from the command line. Just type make after every test/refactor. This works with any IDE, because the tests run on the pc, not on the STM. If you carefully design your software (i.e. keep everything hardware-related separate), this work very efficiently. You don't even need hardware until the software is nearly finished :)

So I just use a console window in STM Cube to make the tests, rather than trying to use anything integrated.

[Rock Deng]

It's great to hear that someone has implmented cpputest in the Cube ecosystem successfully. I've been trying to do the similar thing recently.
