VectorTable Fault

  • May 21, 2025
  • 0 replies
  • 228 views

Hi

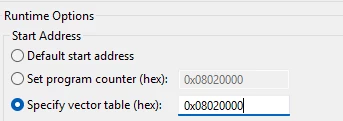

I'm working on implementing a bootloader on a Nucleo H723ZG and attempted to relocate the application to a different flash address. During testing in the debugger, I found that the application only runs correctly when I explicitly specify the vector table address. Without this, the system ends up in a fault (trap) state.





I have the linker file adjusted

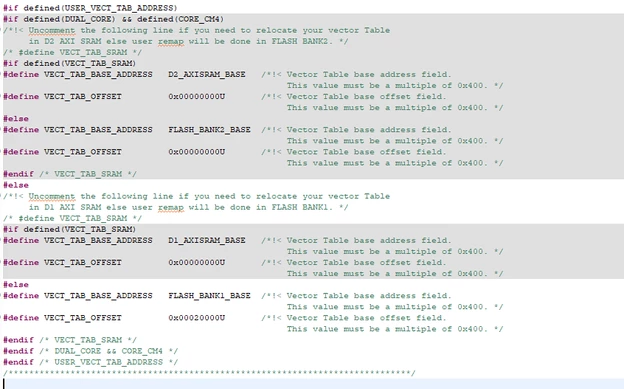

The defines ready:


I have no idea what else could go wrong...

Thank you

BR
