Can I lock stm32h747 chip by setting RDB level in stm32programmer ? I have seen in the document that setting RDB feature works only in stm32f series.

  • February 24, 2022
  • 3 replies
  • 1029 views

..

This topic has been closed for replies.
Best answer by mƎALLEm

This is a screenshot of STM32CubeProgrammer which is connected to STM32H747-DIISCO board.

RDP option is available from OB (Option bytes) menu.


3 replies

Peter BENSCH
Peter BENSCH
Technical Moderator
February 24, 2022

You probably mean RDP = Readout Protection?

This function is of course also included in the STM32H7 series - see e.g. in RM0399, section 4.5.3.

Does it answer your question?

Regards

/Peter

mƎALLEm
mƎALLEmBest answer
Technical Moderator
February 24, 2022

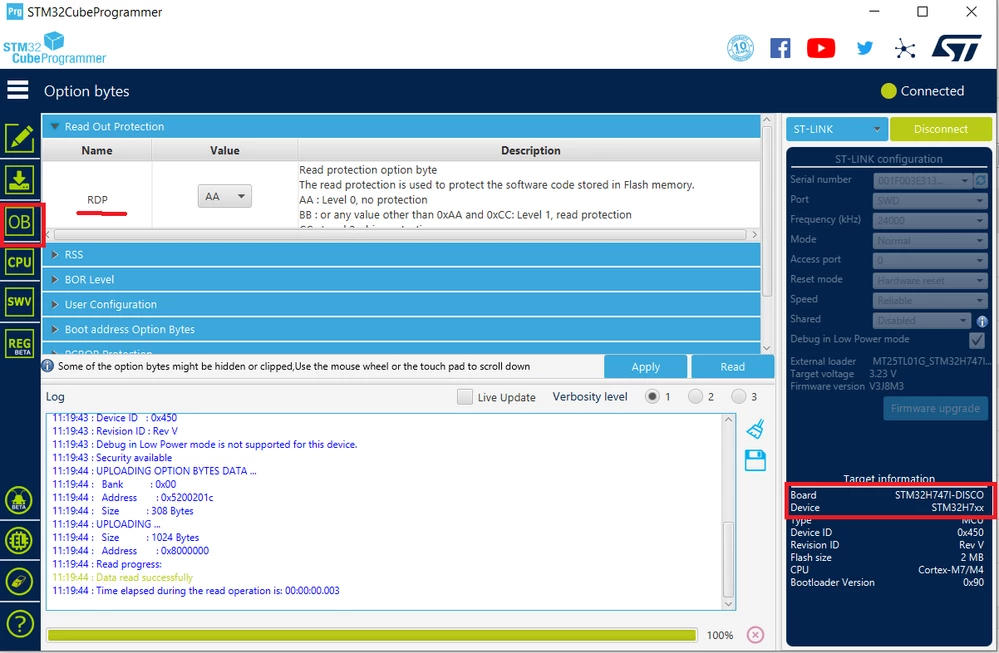

This is a screenshot of STM32CubeProgrammer which is connected to STM32H747-DIISCO board.

RDP option is available from OB (Option bytes) menu.


"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
TDK
TDK
Super User
February 24, 2022

> I have seen in the document that setting RDB feature works only in stm32f series.

What document?

"If you feel a post has answered your question, please click ""Accept as Solution""."
