Connect to STM32F769I-DISCO via UART using STM32Programmer

[MdFayaz]

I tried to connect to STM32F769I-DISCO via UART using STM32Programmed with the following configuration and the following error popped up

Configuration:

Port: /dev/ttyACM0

Baudrate: 115200

Parity: None

RTS: 0

DTR: 0

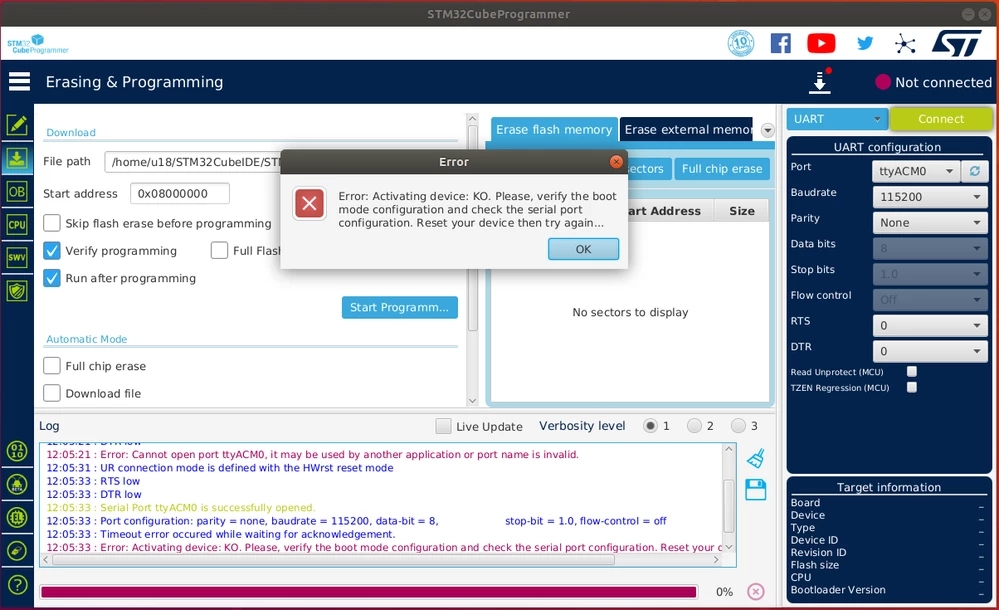

Error:

[Peter BENSCH]

Please change the host configuration from Parity None to Even Parity.

Regards

/Peter

[MdFayaz]

Thanks @Peter BENSCH​ .

After changing the Parity to Even, I tried to connect and still the error comes

[Peter BENSCH]

Make sure you have set the correct boot mode to activate the bootloader. Also make sure you select a supported UART - the STM32F769 uses USART1 and USART3. Details can be found in AN2606, chapter 40.

Regards

/Peter
