h747i-dicso board stm32cubeprogrammer and m7 processor debugging not working

[suhfi]

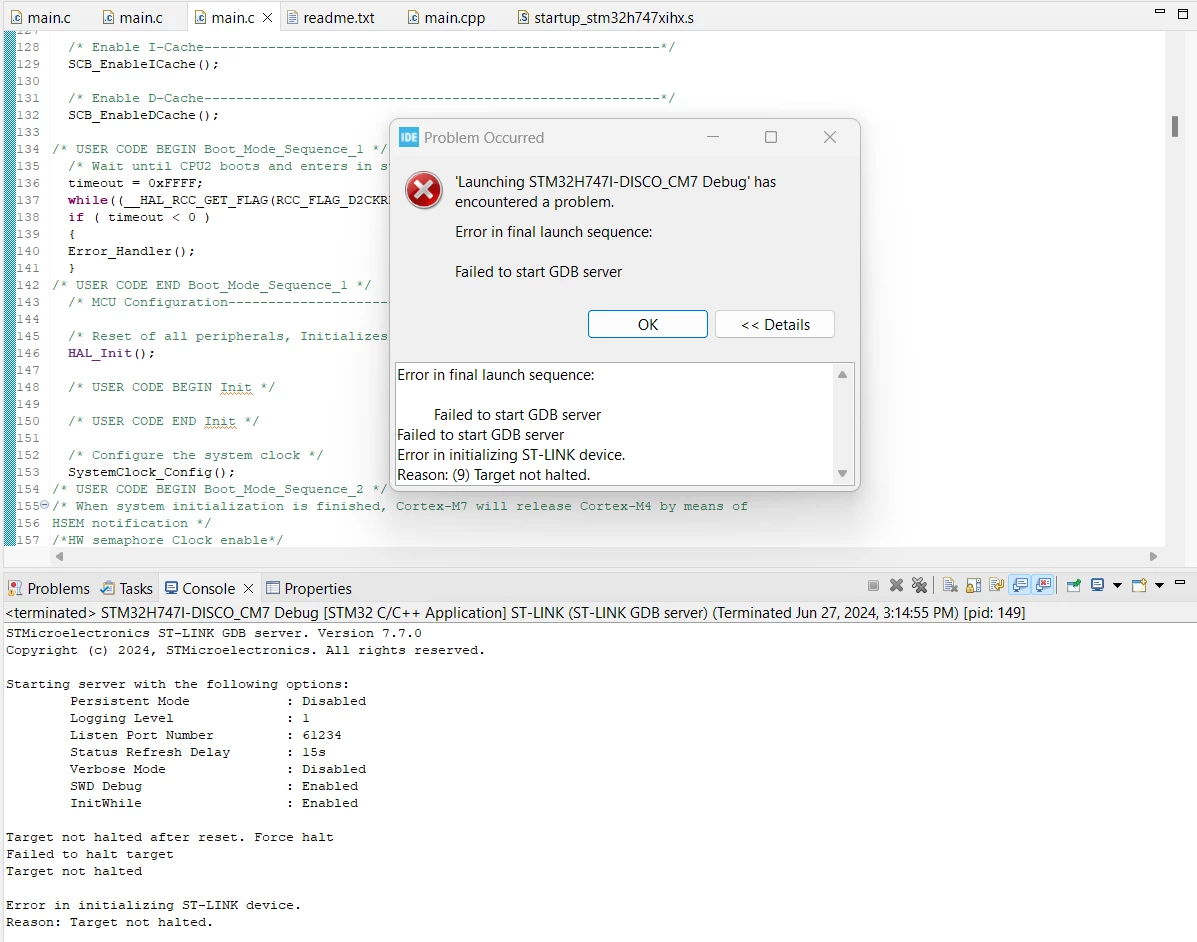

good morning, i am using stm32h747i-disco board. for that when i am executing Touchgfx generated file into stm32cubeide. i am able to debug the m4 processor but not m7 processor. i am getting an error with " internal .elf file".

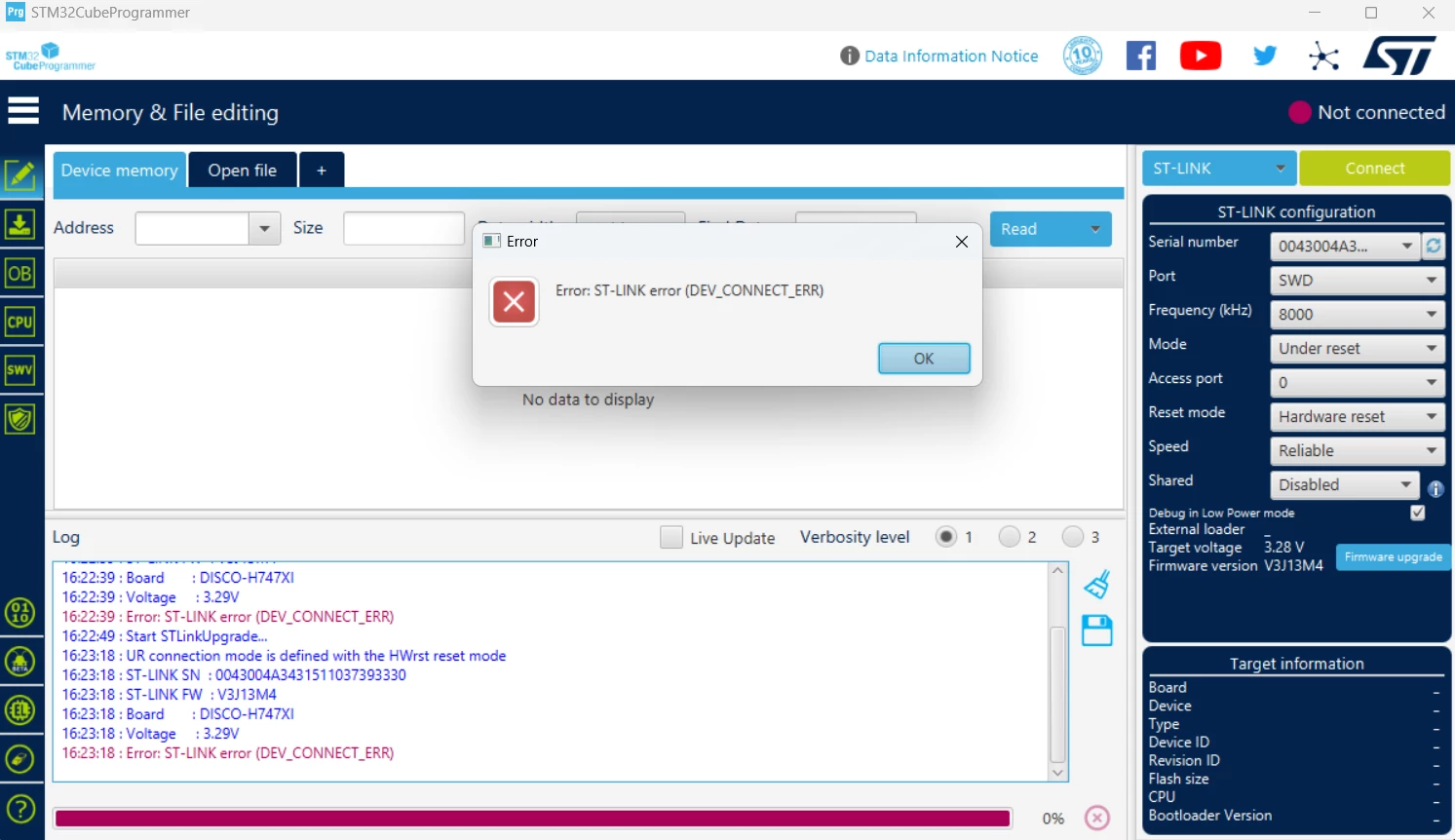

then i did cm7 processor to off in stm32cubeprogrammer and executed the code. from then i am not able to debug the cm4 and cm7 processors, and i am not able connect the cube programmer. and yes i have upgraded the firmware. any help would be so appreciated. thank you in advance.



[Aziz BRIGUI]

Hello @suhfi

You might have chosen the wrong power mode for your board. This might explain why you're unable to connect to the target anymore. I suggest checking this link : How to unbrick an STM32H7 after setting the wrong ... - STMicroelectronics Community.

Let me know if you find this helpful.

Aziz
