How do I setup my Embitz to Debug with new L4Q5 MCUs ?

Forum|Forum|5 years ago
November 3, 2020
1 reply
1692 views

Hi everyone,

I migrated to L4Q5 MCU and the Embitz debugger is not able to see the Target. I have pointed the build options to the new linker file. However, I feel like I need to translate STM32CubeProgrammer settings to the Embitz debugger options. What do I need to do to make it work?

STM32CubeProgrammer

This topic has been closed for replies.

Best answer by Tesla DeLorean

These aren't my tools/choices. https://www.embitz.org/forum/

I'd expect there is a more current STLINK GDB Server in CubeIDE, perhaps pull and test that one.

VNado.1Author

Associate III

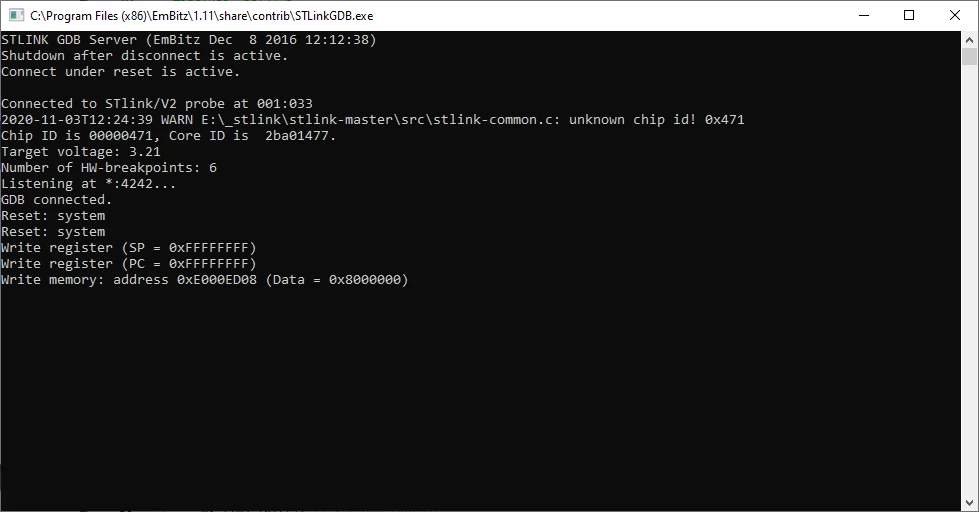

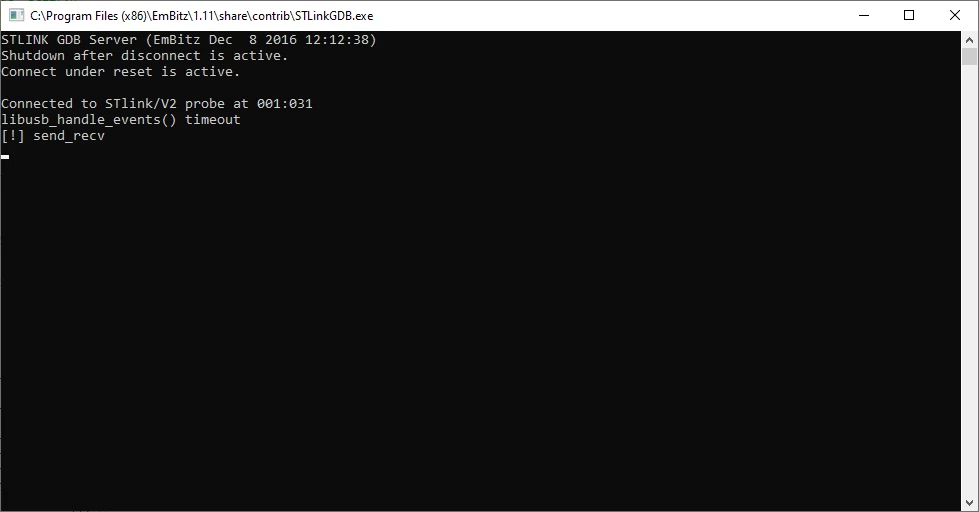

I have made some progress by finding the right .svd file. However, I still have some problems with the debugger. It seems that the chip ID is unknown somewhere?
