I'm having some issues reading memory addresses in an STM32L071RB.

[NTzov.2]

Hello, I'm having some issues with an STM32L071RB. I'm unable to read from memory address 0x08020000 onwards because it's supposed to be read/write-protected.

I had similar results on STM32CubeProgrammer and via the I2C bootloader, which are as follow:

• Reading address 0x08020000 from STM32CubeProgrammer. I get: "Error: Data read fail". Any address from 0x08000000 up to 0x08020000 work fine.
• Reading the whole flash space from I2C bootloader and it fails at "Read address 0x08020000 (66.67%) Failed to read memory at address 0x08020000, target write-protected?"

To remove the read/write protections I tried the following:

On CubeProgrammer

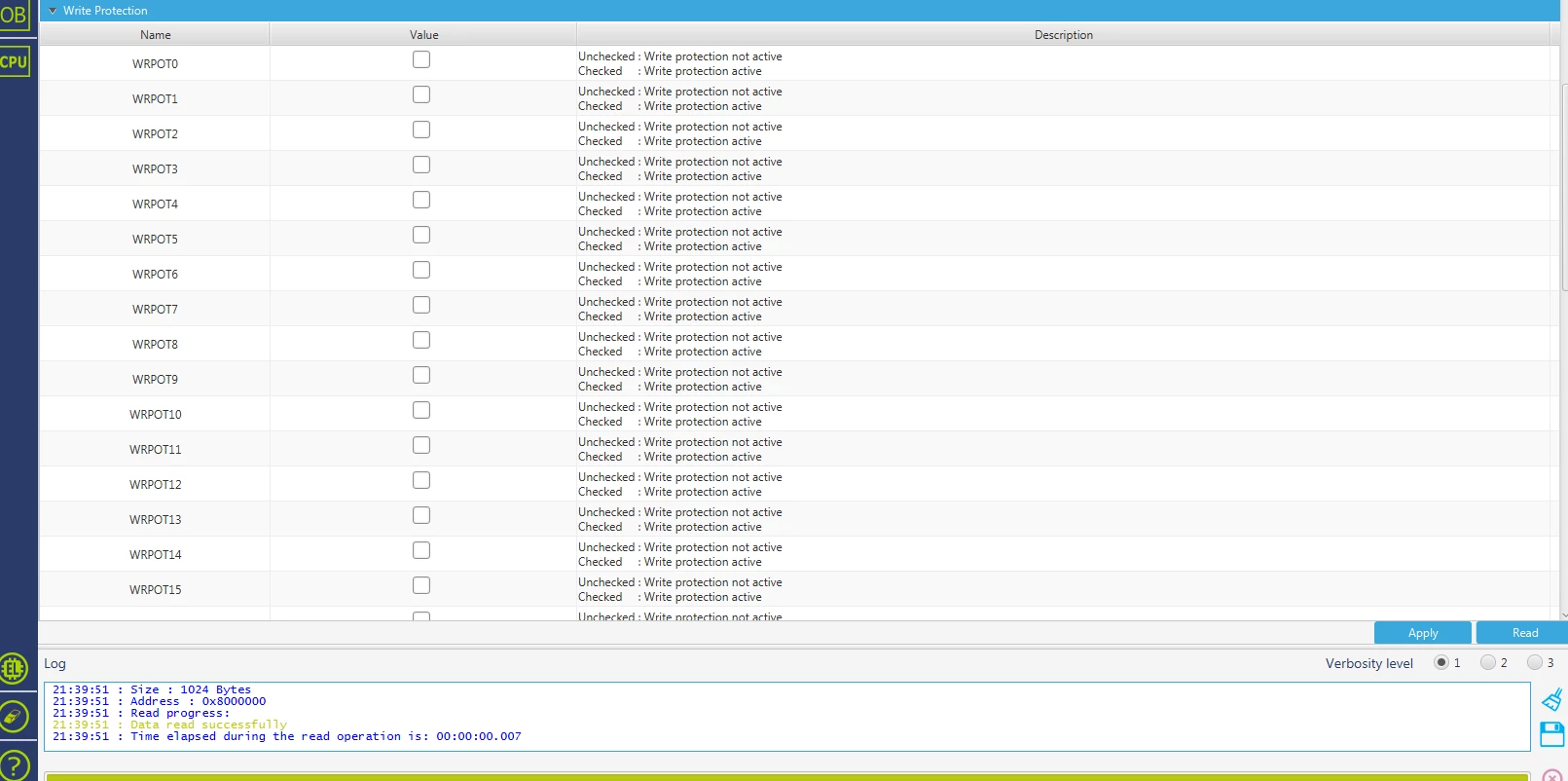

• Making sure all the read/write protections are disabled in the option bytes.
• Tried setting WPRMOD=1 and then WPRMOD=0
• Tried setting RDPROT=0xBB and then back to RDPROT=0xAA
• Tried doing a full erase, which fails because some sections are write protected.

Via I2C bootloader

• Sent commands to remove read and write protections, but the result is the same.

Via firmware

• Reading option bytes using HAL_FLASHEx_AdvOBGetConfig. The result is that PCROPSector, PCROPSector and PCROPState are all 0.
• Tried also to set it to 1 and then back to 0.

This issue seemed to have appeared when I was testing writing and reading from EEPROM, which shouldn't be related.

I'm not sure what else I could try. Any help is appreciated.

[Tesla DeLorean]

Wouldn't the root of the problem be that the part only has 128KB of FLASH?

[NTzov.2]

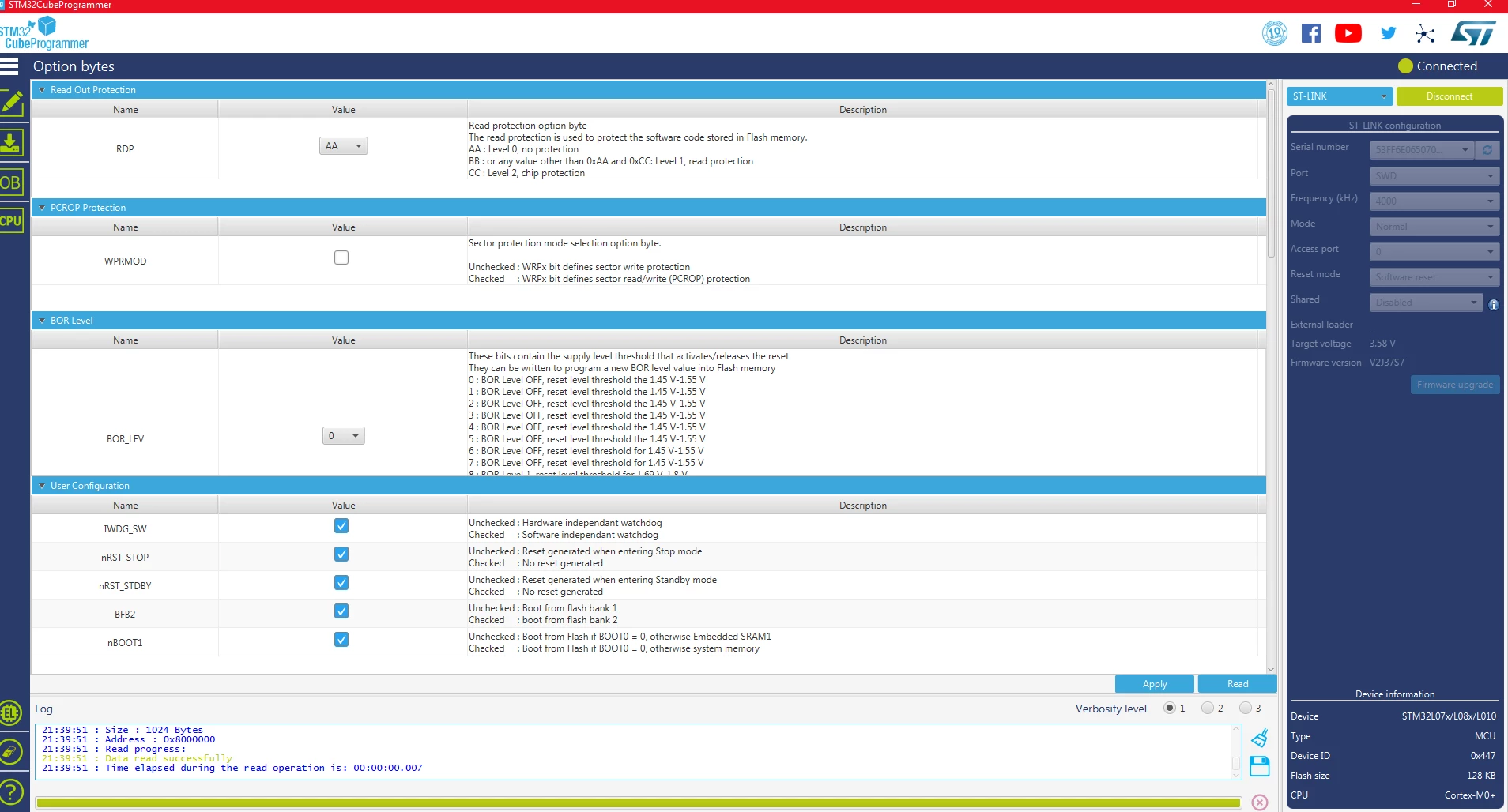

That makes sense. The question then is why is the STM32CubeProgrammer trying to erase pages outside the available range on a full chip erase? You can see on the screenshots attached that the part number is recognized correctly.

[Tesla DeLorean]

>>The question then is why is the STM32CubeProgrammer trying to erase pages outside the available range on a full chip erase?

I don't see any screen-shot of that, but the software has plenty of bugs in it.

[NTzov.2]

The screenshot attached shows that the part is properly recognized. I didn't attach a screenshot for the failing full chip erase (I just mentioned it in my comments). It could definitely be just a bug on the software, any ideas on how/where to report it?

Thanks a bunch for the help btw!
