In cubeprogrammer unbale to add start address

[MDeva.1]

Hello,

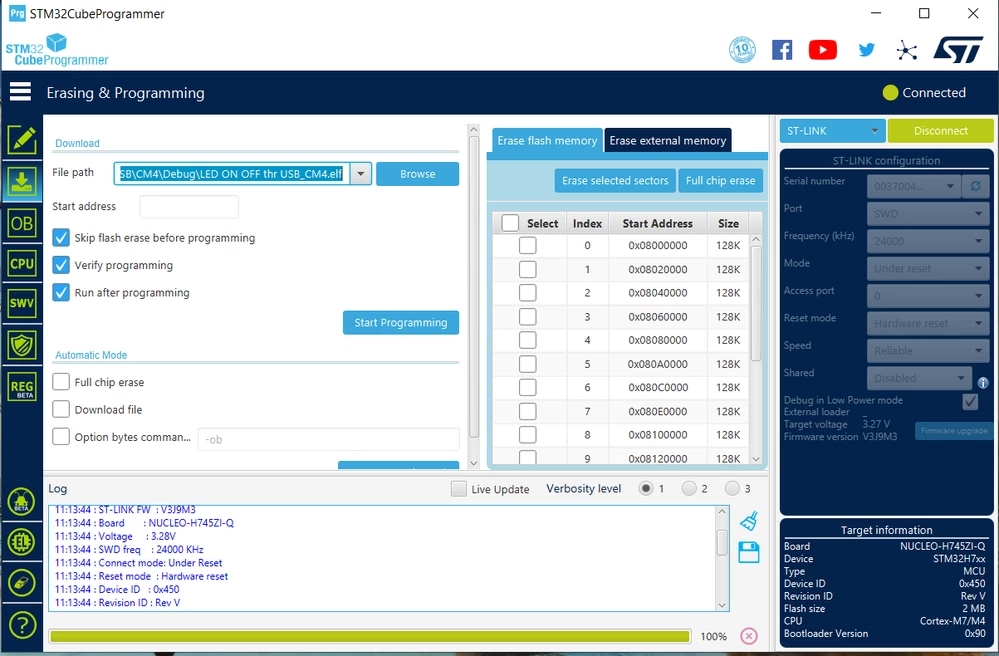

I am working on NUCLEO-H7 board . Its dual core CM7 and CM4. When I Erase the full flash then I click into erase and programming option but I unable to add start address . The core M7 is get programming , but in Core M4 i unable to do programming because in start address block I unable to write . i am using latest version of cubeprogrammer.

[Tesla DeLorean]

Use a .BIN file, not a .ELF

​

[MDeva.1]

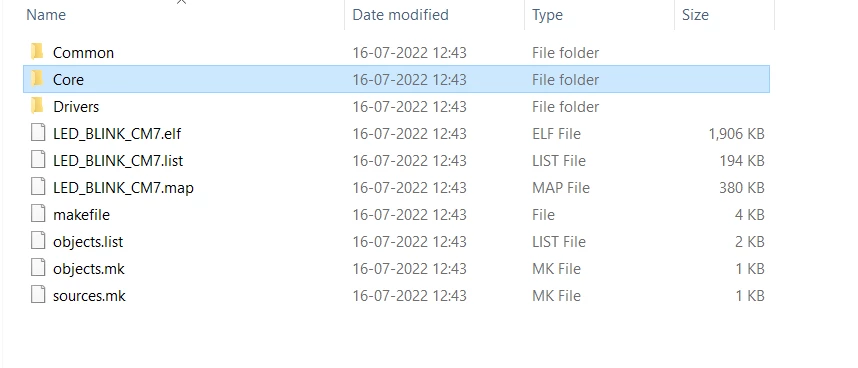

I am working on STM32CUBEIDE. In which folder I get the .bin file

[Tesla DeLorean]

Don't know, not my tools.

I'd imagine in similar place to .ELF if you've checked a "create .BIN" option, or you run objcopy

​

Other question would be why the .ELF doesn't work or infer the correct address, as it's an object file

[MDeva.1]

[Mike_ST]

Hello,

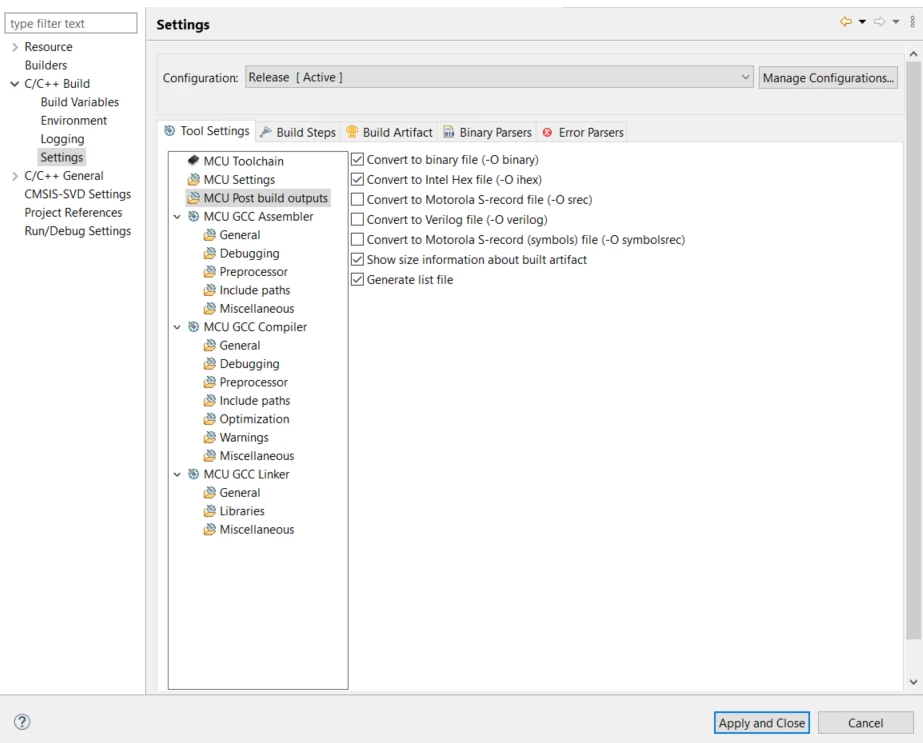

there are options to create bin and hex, please check the following picture:They should be created in the same directory as the .elf file.
