STM32 Cube Programmer 2.13 handling of hybrid sector sizing tables

[Tesla DeLorean]

I have an external loader that needs to describe

32 x 4K Erase Blocks

1 x 128KB Erase Block @ 0x90020000

511 x 256KB Erase Blocks @ 0x90040000

The decoding of the base address resets to 0x90000000 for some inexplicable reason

@Nawres GHARBI​ @Sara BEN HADJ YAHYA​

[Tesla DeLorean]

S25HL01GTDPMHI010

https://www.digikey.com/en/products/detail/infineon-technologies/S25HL01GTDPMHI010/15903889

https://www.infineon.com/dgdl/Infineon-S25HS256T_S25HS512T_S25HS01GT_S25HL256T_S25HL512T_S25HL01GT_256Mb_512Mb_1Gb_SEMPER_Flash_Quad_SPI_1_8V_3_0V-DataSheet-v01_00-EN.pdf?fileId=8ac78c8c7e7124d1017f01cbec965b8b

https://github.com/cturvey/stm32extldr/blob/main/h7_s25hl01g/CLIVEONE-S25HL01GT_STM32H7XX-PB2-PB6-PD11-PD12-PE2-PD13.stldr

[Sara BEN HADJ YAHYA]

Hello @Community member​ ,

Thanks for your feedback,

Could you please send me the external loader's source code for further check?

Thanks in advance,

Sara.

[Tesla DeLorean]

I'm not sure that's necessary to debug a static decode failure on the application side.

​

T​he index and address should keep advancing, the order and sequence of the sizing looks correct. So it's reading the table of counts / sizes.

​

O​ther aspects of the loader are working properly. And if passed a memory range the Erase function in the loader decomposes it appropriately.

[Tesla DeLorean]

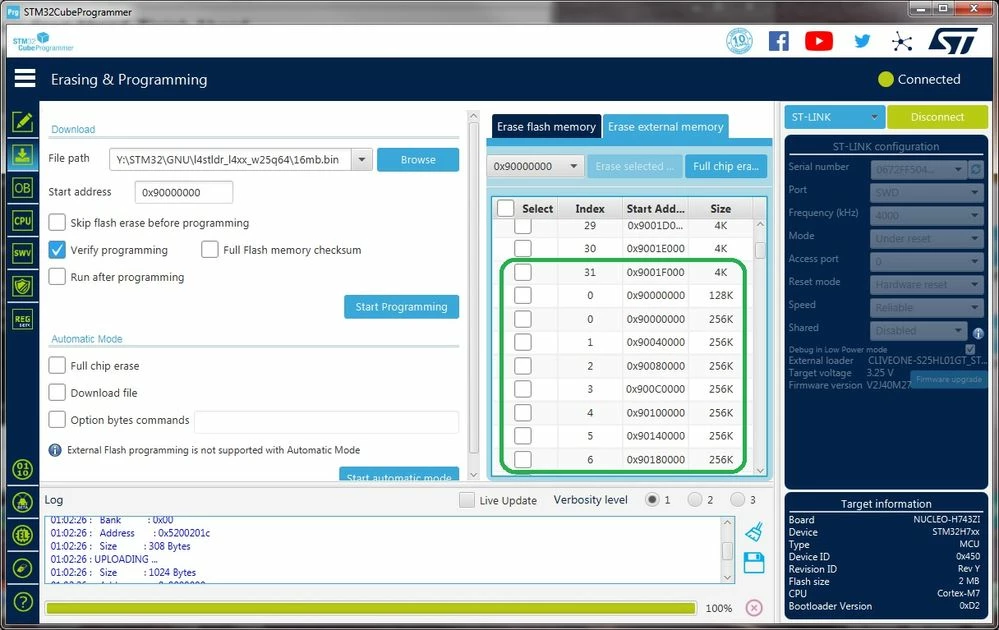

Ok, when check boxing the 128KB sector, the one that lives at 0x90020000, the tools pass the loader an EraseSector(0x90000000), so the address computation code is some how broken.

[Sara BEN HADJ YAHYA]

Hello @Community member​ ,

Sorry for the late reply,

Could you please send me the dev_inf.c file ?

Thanks in advance,

Sara.

[Tesla DeLorean]

It's an enumerated list of counts and sizes, should be apparent from table in binary

See also trailing comment here

STM32CubeProgrammer_v2.10\bin\ExternalLoader\IS61WV51216BLL_STM3210E-EVAL\Sources\Loader_Files\Dev_Inf.c

Related defines for attached file

#ifdef USE_S25HL01GT // 128MB
#define PART_NAME "S25HL01GT"
#define QSPI_FLASH_SIZE (128 * 1024 * 1024)
#define QSPI_FLASH_SHIFT 27
#define END_BLOCK 0x07FC0000 // 128MB-256KB-1
#define USE_SPANSION
#define USE_ADR32
//#define ERASE_BLOCK_SIZE (256 * 1024)
#define ERASE_BLOCK_SIZE (4 * 1024)

#define COMPLEX1_BLOCK_SIZE (4 * 1024)
#define COMPLEX1_BLOCK_COUNT 32
#define COMPLEX2_BLOCK_SIZE (128 * 1024)
#define COMPLEX2_BLOCK_COUNT 1
#define COMPLEX3_BLOCK_SIZE (256 * 1024)
#define COMPLEX3_BLOCK_COUNT 511

#endif

[Sara BEN HADJ YAHYA]

Hello @Community member​ ,

First I apologize for the late reply,

The issue is confirmed and it is raised to the development team to fix it. I will keep you posted with updates.

Internal ticket number: 150017 (This is an internal tracking number and is not accessible or usable by customers).

Thank you for your contribution,

Sara

[Sara BEN HADJ YAHYA]

Hello @Tesla DeLorean ,

This issue is fixed in STM32CubeProgrammer latest release.

V2.14.0 is now available under this Link.

Thanks for your contribution :)

Sara
