STM32 Cube Programmer V2.2.0 still buggy

[Tesla DeLorean]

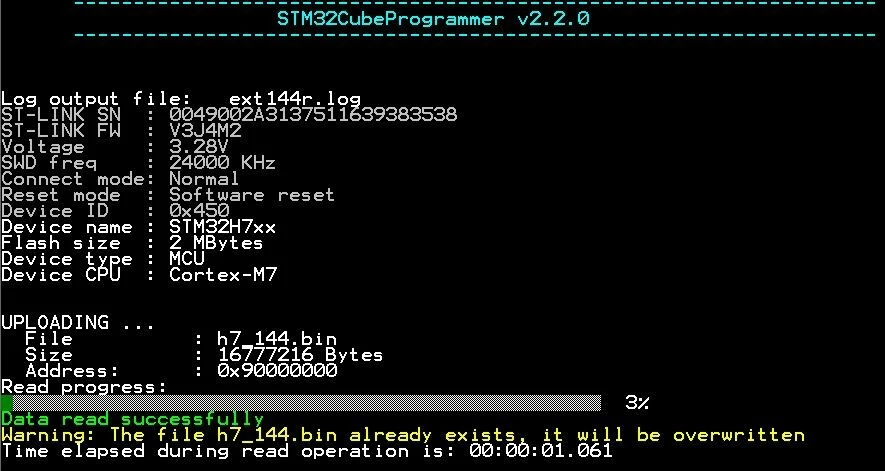

CLI application stops reading 16MB QSPI after reading less than 1MB (one buffer to RAM), percent progress bar doesn't advance.

STM32_Programmer_CLI --connect port=swd --vb 3 --log ext144r.log --extload CLIVEONE-W25Q128B_STM32H7xx-NUCLEO-144.stldr --upload 0x90000000 0x1000000 h7_144.bin

20:14:28:780    -------------------------------------------------------------------

20:14:28:780            STM32CubeProgrammer v2.2.0

20:14:28:780    -------------------------------------------------------------------

...

UPLOADING ...

20:14:33:212  File     : h7_144.bin

20:14:33:214  Size     : 16777216 Bytes

20:14:33:228  Address:   : 0x90000000

20:14:33:234 Read progress:

20:14:33:235 Reading data...

20:14:33:351 halt ap 0 Status = 0

20:14:33:352 halt ap 1 Status = 32

20:14:33:352 halt ap 2 Status = 32

20:14:33:352 w ap 0 reg 15 PC  (0x24000000)

20:14:33:352 w ap 0 reg 17 MSP (0x24000500)

20:14:33:352 w ap 0 reg 16 xPSR (0x01000000)

20:14:33:352 w ap 0 @0x24001CA0 0x00000200 bytes

20:14:33:352 w ap 0 @0x24000000 0x00000004 bytes

20:14:33:362 w ap 0 @0x24000004 0x00001874 bytes

20:14:33:362 Init flashloader...

20:14:33:362 halt ap 0

20:14:33:362 w ap 0 reg 0 R0  0x00000000

20:14:33:362 w ap 0 reg 1 R1  0x00000000

20:14:33:362 w ap 0 reg 2 R2  0x00000000

20:14:33:362 w ap 0 reg 3 R3  0x00000000

20:14:33:362 w ap 0 reg 4 R4  0x00000000

20:14:33:362 w ap 0 reg 5 R5  0x00000000

20:14:33:362 w ap 0 reg 6 R6  0x00000000

20:14:33:362 w ap 0 reg 7 R7  0x00000000

20:14:33:372 w ap 0 reg 8 R8  0x00000000

20:14:33:372 w ap 0 reg 9 R9  0x00000000

20:14:33:382 w ap 0 reg 10 R10 0x00000000

20:14:33:382 w ap 0 reg 11 R11 0x00000000

20:14:33:382 w ap 0 reg 12 R12 0x00000000

20:14:33:382 w ap 0 reg 13 SP  0x00000000

20:14:33:382 w ap 0 reg 14 LR  0x24000001

20:14:33:382 w ap 0 reg 15 PC  0x2400108D

20:14:33:382 w ap 0 reg 16 xPSR 0x01000000

20:14:33:382 w ap 0 reg 17 MSP 0x24001C74

20:14:33:382 w ap 0 reg 18 PSP 0x00000000

20:14:33:382 run ap 0

20:14:33:382 halt ap 0

20:14:33:382 r ap 0 reg 0 R0  0x00000001

20:14:34:389 r ap 0 @0x90000000 0x0007E000 bytes

20:14:34:390

Data read successfully

20:14:35:070 Warning: The file h7_144.bin already exists, it will be overwritten

20:14:35:094 Time elapsed during read operation is: 00:00:01.156

[Houda GHABRI]

​Hi Clive,

The first issue of your ticket that was reading failed from Flash QSPi External, this problem is fixed in version 2.2.0.

But there is now another problem: read more than 1 MB (only available with CLI) is still not possible, I confirm.

The Cubeprogrammer development team is aware of this problem and will be corrected shortly.

Feel free to contact me for furthers details.

Best regards,

Houda

[mattb3.14159]

I have exactly the same problem. Do you need a beta tester for the --upload 0x00000000 0x1000000 fil.bin bug?

[Tesla DeLorean]

I've not seen resolution on this.

Seem to recall I can pull the whole payload via ST-LINK Utilities (4.5.0)

128MB via H750-DISCO

ST-LINK_CLI -c ID=0 SWD -Dump 0x90000000 0x8000000 extwhole.bin -EL "C:\CT\STM32\ST-LINK Utility V4.5.0\ExternalLoader\CLIVEONE-MT25TL01G_STM32H7-CUSTOM.stldr"
