STM32CubeProg stm32h7xx Option Bytes User Configuration disappears if disabled by firmware

[dariis]

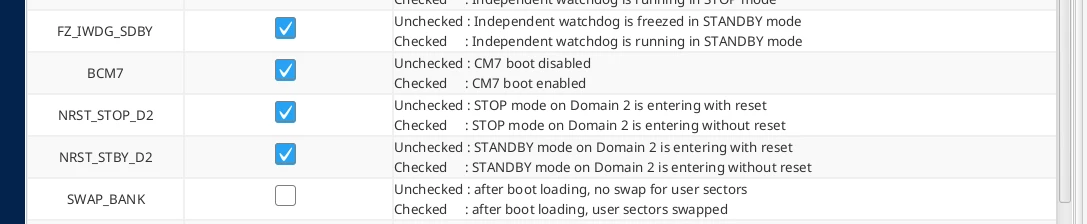

If on a STM32H747 the Cortex-M4 (BCM4 or BOOT_M4 Bit) is disabled by software, it is impossible to reactivate it with the STM32CubeProg v2.18.0 because the checkbox disappears in the user interface. But this happens only if you do a power cycle and reconnect to the target.

[TDK]

Unable to replicate this on a STM32H745.

What happens if you clear it using STM32CubeProgrammer instead of firmware?

[dariis]

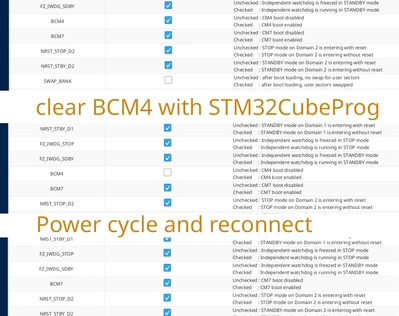

It happens with STM32CubeProg too:

[mƎALLEm]

Hello,

I was not able to reproduce the behavior with CubeProgrammer V2.18:

- Connected to the H745 Disco board (ested also with H747 Disco board)

- Disable BCM4 in the option bytes

- Disconnect the USB cable (power cycle)

- Reconnect USB + connect with CubeProgrammer

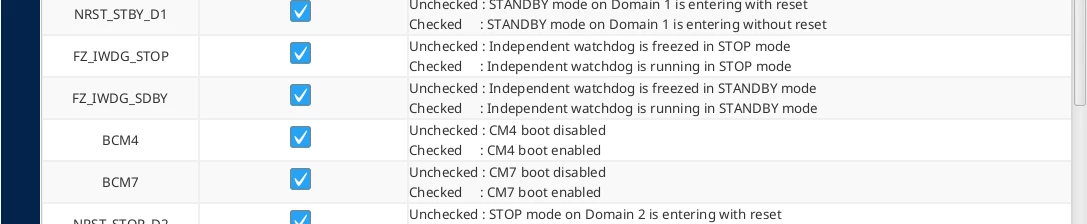

- In the option bytes BCM4 still available.



[mƎALLEm]

What is your platform/OS?

Is that possible to uninstall and reinstall CubeProgrammer and see what happens?

[dariis]

Fair enough, I do not have the problem with the H747 disco board (but I did not test to write the OB by SW).

I use a custom HW and a J-Link with Linux Debian, I tried reinstall CubeProgrammer but it did not help.

So I think we keep it as it is.

[mƎALLEm]

Hello,

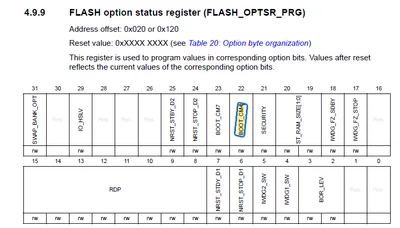

After applying the the new option byte configuration go to the device memory and read the content of the registers

FLASH_OPTSR_CUR and FLASH_OPTSR_PRG:

FLASH_OPTSR_CUR located at the address 0x5200201C

FLASH_OPTSR_PRG located at the address 0x52002020

For example this is a screenshot of my FLASH_OPTSR_CUR reading:

8 means the CM4 is disabled. C means CM4 is enabled.

If you find that the reading of these registers corresponds to what you set in the option bytes, this means the option byte were physically correctly set and there is something went wrong in CubeProgrammer.









[mƎALLEm]

So it's a GUI issue not related to the hardware.

Internal ticket 204208 has been opened for analysis. This ticket is not accessible by the community users.



[mƎALLEm]

Behavior reproduced internally by our teams.

It will be analyzed asap.

[Michael3368]

Any update on this?  I have the exact same issue.  I unchecked BCM4 in STM32CubeProgrammer for STM32H745, and then after reboot, the checkbox isn't even there to check it again.

Also, it is not just GUI because the Cube Programmer CLI says the BCM4 register isn't available now.

[mƎALLEm]

If there were any update I've already provided it..

Don't expect to have an updated version very soon. I will keep you informed for any update.

Thank you for your understanding.



[Aziz BRIGUI]

Hello @dariis

Issue fixed in the latest STM32CubeProgrammer release available under this link: STM32CubeProg | Software - STMicroelectronics.

Aziz
