STM32CubeProgrammer API - Canceling current operation or disable reconnection attempt

[fma]

Hi,

I am using the STM32CubeProgrammer API (v2.20.0) on Windows 11 using the Visual Studio UART example as a base. Everything works fine, however this issue is slowing down the programming workflow.

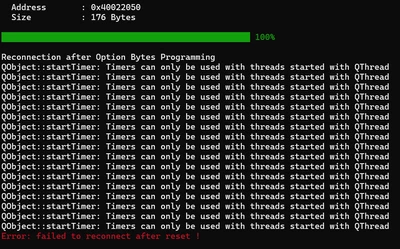

After programming the MCU option bytes to RDP1 (or Closed state on some newer devices), there is a long delay (20 to 30 seconds) during the attempts to reconnect to the device. I already expect that the reconnection attempt will fail, so is there a way to reduce the time or number of reconnection attempts? Or a way to cancel the current operation? The time taken for failed reconnection attempts is 2x longer than the actual programming of the MCU.

I noticed that there is a getCancelPointer() function in the API, but I have found no documentation or examples on how to use it. Is it possible to use this or is there some other way?
Edit: Added info - using UART to program the device

/**
 * \brief This routine allows to drop the current read/write operation.
 * \return 0 if there is no call for stop operation, otherwise 1.
 */
volatile int* getCancelPointer();





[fma]

To add more information, this will be used in a production environment with 3000 to 5000 MCUs programmed every month. That's why the 30 second delay matters.

[Aziz BRIGUI]

Hello @fma,

You can use the new no reconnect option available in CubeProgrammer v2.20. Example:

sendOptionBytesCmd((char*)"-ob RDP=0xBB noreconnect");

Hope this helps,

Aziz

[fma]

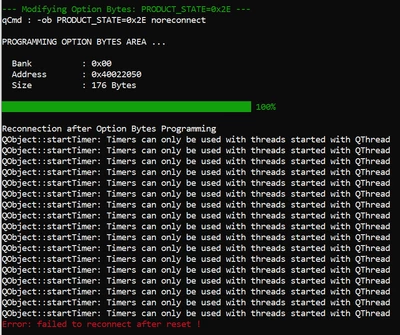

I have tried this on my STM32H5 and there is no error, but it still attempts to reconnect



[Aziz BRIGUI]

Hello @fma,

Issue is fixed in the latest STM32CubeProgrammer release available here.

Aziz
