STM32CubeProgrammer: Can't select connection type in Linux

[rdmikkelsen]

When I am trying to use the STM32CubeProgrammer in Linux, only the default connection option of J-Link is available. No other options "drop down" in the drop-down menu. Since I am set up to connect over USB, this means I am unable to connect to or reprogram the board (STM32MP257F-DK).

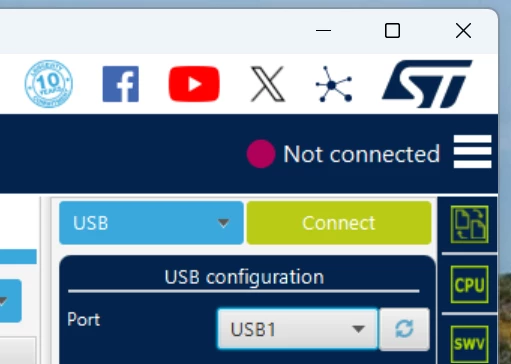

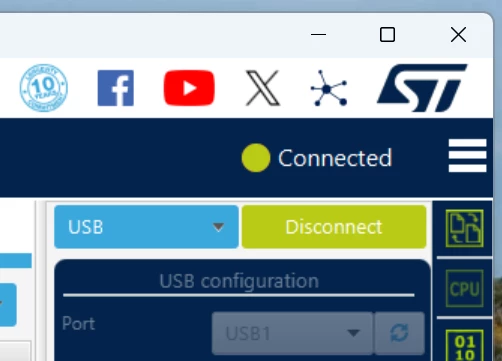

When I test this same thing on Windows, it shows USB as a connection option, and it can connect successfully. The drop-down menu appears normal. It used to work properly like this in Linux before, and I don't believe I changed any settings in STM32CubeProgrammer since then.

Is there a way I can get the standard behavior back when using Linux? I am following the steps as described here: https://wiki.st.com/stm32mpu/wiki/Getting_started/STM32MP2_boards/STM32MP257x-DK/Let%27s_start/Populate_the_target_and_boot_the_image

[Aziz BRIGUI]

Hello @rdmikkelsen

Please refer to STM32CubeProgrammer user manual page 13.

You need to install libusb via this command line:

sudo apt-get install libusb-1.0.0-dev

I also suggest copying the rules in "[CubeProgrammer install path]/Driver/rules" into "/etc/udev/rules.d" to have all interfaces available. You can navigate to it and use :

sudo cp *.* /etc/udev/rules.d

Hope you'll find this helpful.

Aziz

[rdmikkelsen]

Thank you for the response. I can confirm that libusb was already installed as stated in the manual, and the udev rules were copied into that location. With the commands you gave, I got messages confirming that libusb was already on the newest version, and the relevant rules are already present in /etc/udev/rules.d

Is there anything else that could potentially cause issues here?

[Aziz BRIGUI]

Hello,

Are you sure you restarted STM32CubeProgrammer after those modifications? Could you try running ls on /etc/udev/rules.d and share the output?

Thanks,

Aziz
