STM32CubeProgrammer Erasing External Flash Multiple selection

Hey Folks!

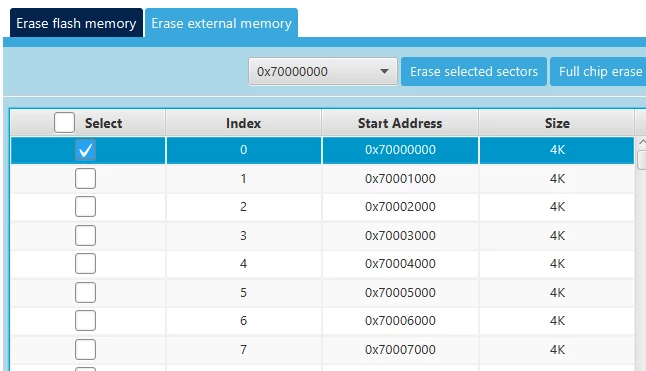

Is there a way to select multiple sectors to erase on an External Flash, instead of clicking on every entry?

I have tried holding down SHIFT, e.g. Click 0, Hold shift, Click 5. That just selects 5.

Alternatively is there a CLI tool where I can provide an address range to erase?

I am using 2.19:

Kind Regards,

Best answer by exarian

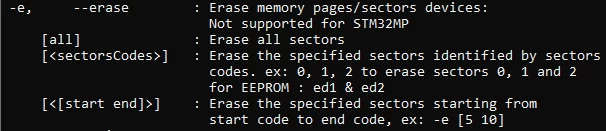

I managed to get it right using the CLI tool, specifically making use of the "-e [START END ]" command.

STM32_Programmer_CLI.exe -e [START END] -el <PATH-TO-LOADER.stldr> <OTHER ARGS TO CONNECT>

It would be great however if the GUI had the option to select multiple (But not just ALL).

Kind Regards,

exarianAuthorBest answer

Associate III

I managed to get it right using the CLI tool, specifically making use of the "-e [START END ]" command.

STM32_Programmer_CLI.exe -e [START END] -el <PATH-TO-LOADER.stldr> <OTHER ARGS TO CONNECT>

It would be great however if the GUI had the option to select multiple (But not just ALL).

Kind Regards,
