Dear all

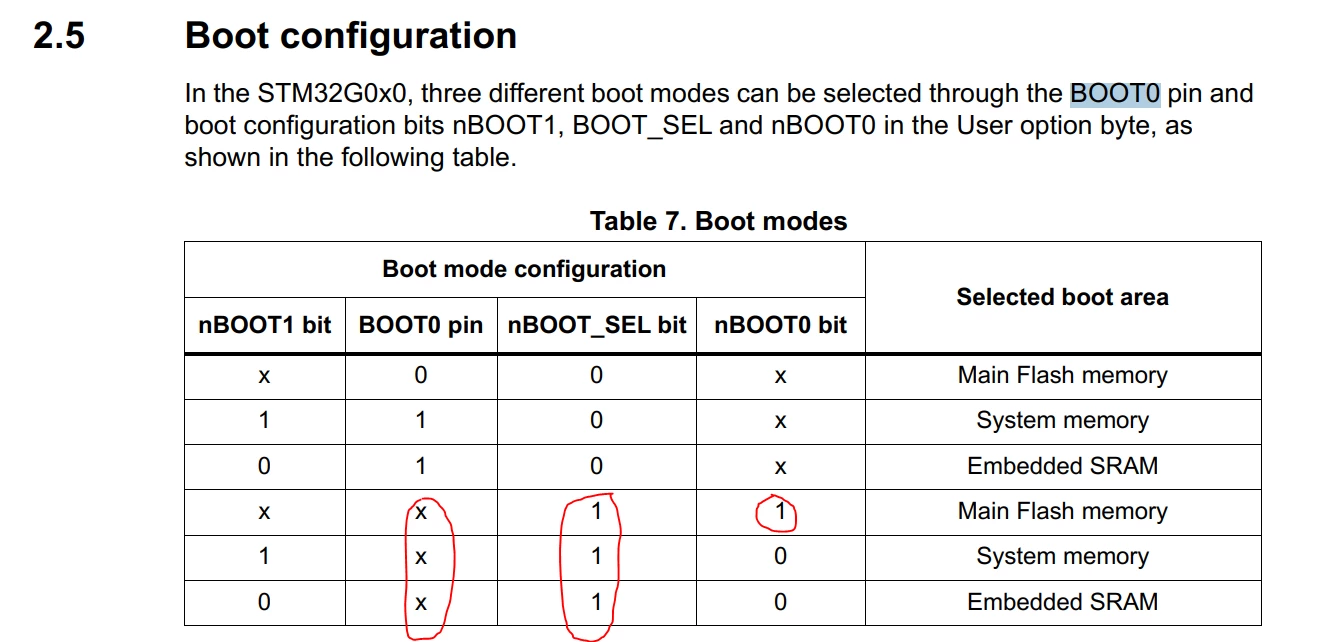

I think the description is wrong or BOOT0/BOOT1 is swapped - see attachments.

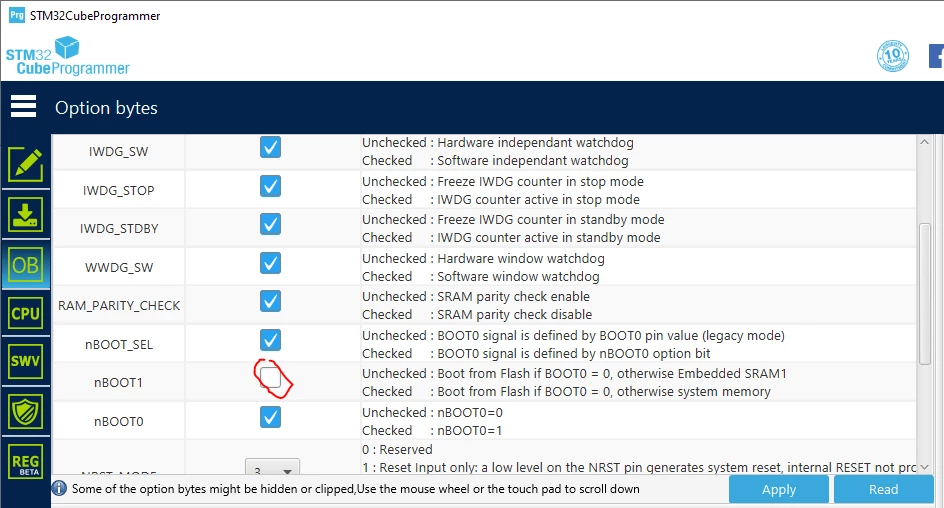

If the option bytes are programmed as shown under STM32CubeProgrammer.png, the controller boots from flash.

Thanks in advance,

Franz

[KiptonM]

Yes they are. I found out the hard way when it did not work. It was pointed out to me to use the documentation (Reference Manual) and that works.
