STM32H562RIT6 is not programmed

Hi

I have designed a header board for the STM32H562RIT6 microcontroller, but no matter how hard I try, I can't program it! The wiring is as follows. Please guide me on how to program this microcontroller. If there are any tips or specific instructions for programming this microcontroller, I would appreciate your help.

WIRING ( SIMILAR TO AN5711 PAGE 36 ) :

All VDD and VDDA pins → connect to 3.3V

All VSS and VSSA pins → connect to GND

BOOT0 → connect to GND through a 10kΩ resistor

RESET → connect to GND through a 100nF capacitor

Connect the two VCAP pins together, and connect each pin to a 2.2µF capacitor

PROGRAMMER : ST-LINK V2 ( 3.3V , GND , SWDIO , SWCLK )

[mƎALLEm]

Hello @unknown and welcome to the community,

1- Insufficient information. Better to share your schematics.

2- What tools are you using? STLINK (genuine or not) with STM32CubeProgrammer or CubeIDE?

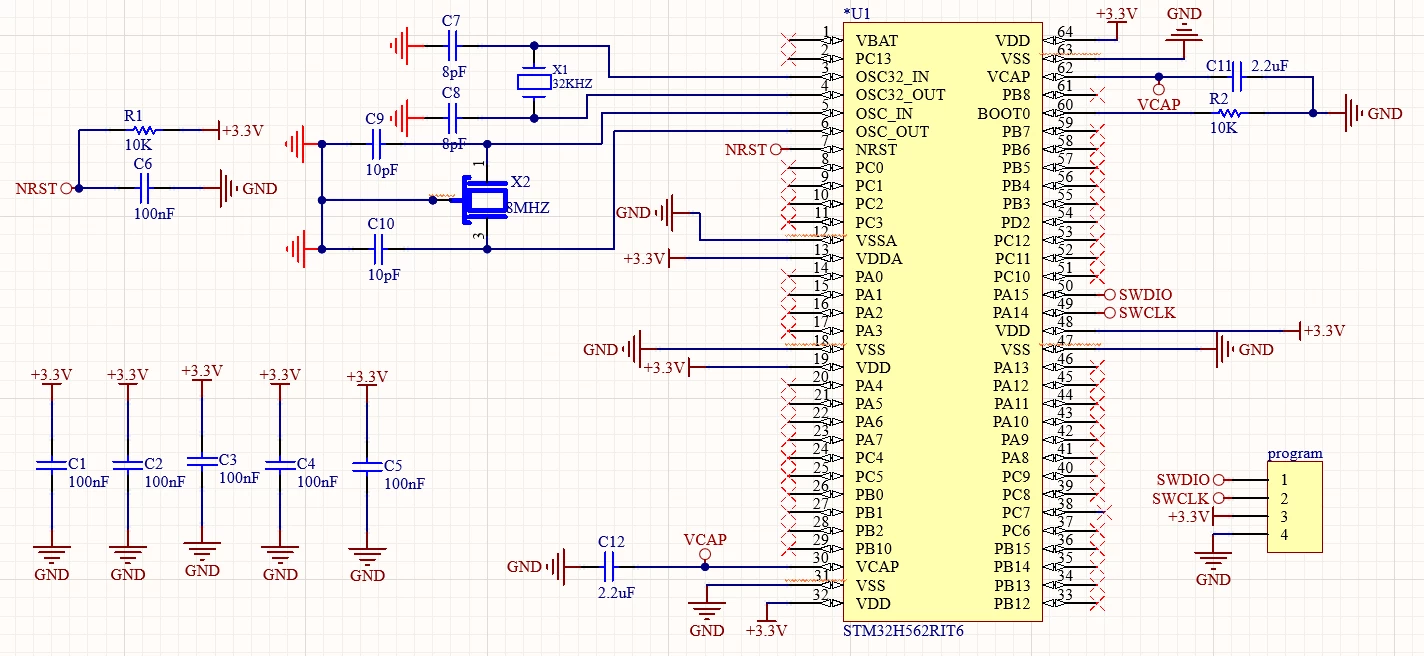

The software is STM32 ST-LINK Utility, and I have placed shamatic

[mƎALLEm]

Hello,

---

@unknown wrote:

The software is STM32 ST-LINK Utility, and I have placed Roshamatic in the "Youst" folder.

---

No. ST-LINK Utility is an old tool and doesn't support that device. You need to use STM32CubeProgrammer instead.
