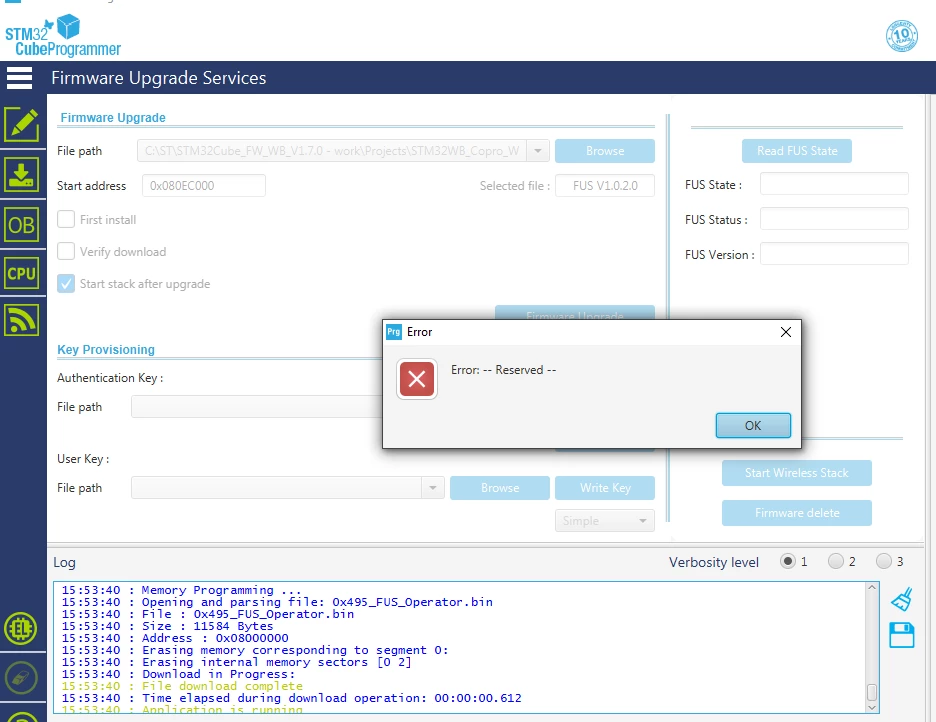

why STM32 cube programmer show Error: --reserved -- when loading coprocessor binary stm32wb5x_FUS_fw.bin with start address 0x080EC000?

[WMaca]

Target: NUCLEO-WB55.Nucleo

[Mike_ST]

Please check:

https://community.st.com/s/question/0D50X0000CCqGAd/error-reserved-message-when-trying-fus-upgrade-via-swd

Not sure that can help.

You can try to read back FUS state and version with CubeProgrammer connected using USB (not ST-Link) with BOOT0=1.

By experience, It seems CubeProgrammer cannot read back FUS state using SWD.

[Terry Greeniaus]

If you have access to Linux or macOS, the psdb tool can be used to upgrade your FUS. Instructions here: https://github.com/tgree/psdb
