CAN FD Support

[automationworld]

 Hello, I am looking for a MPU as CAN FD master but couldn't find the type with explicit CAN FD support. I would inquire here to make sure I haven't missed any details, and also ask for more information about the availability of the high performance chip with CAN FD interface. Thank you!

[mƎALLEm]

Hello @automationworld and welcome to the Community.

STM32MP157 has two FDCAN instances.

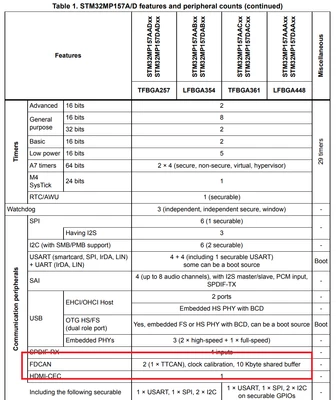

From the datasheet:

Are you sure you are looking for a MPU product not MCU?



[automationworld]

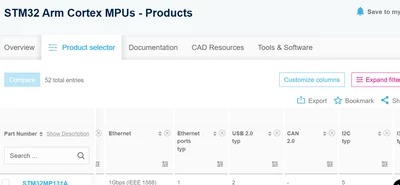

Thank you and really appreciated! I missed digging into the datasheet. My question came from the high level product selector at MPUs intro page doesn't explicitly show CAN FD option but only CAN 2.0.





[mƎALLEm]

Hello,

Looking at STM32MP131 datasheets, there is no CAN support at all neither FDCAN nor CAN2.0.

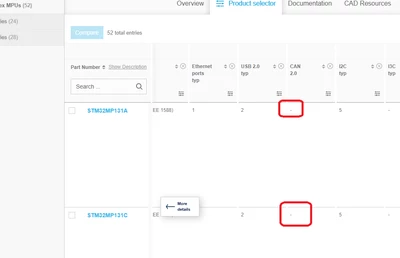

And indeed in the product page it shows the unvailability of CAN/FDCAN on these devices:



Unlikely to STM32MP157 or STM32MP135 which have two FDCAN instances each .

Example of STM32MP135 in the product selector:

And I confirm there is an issue in the Peripheral naming it needs to be FDCAN not CAN 2.0.

Hope it's clear now.
