RGB LTDC on STM32MP15X-EVAL BOARD

  • June 7, 2023
  • 1 reply
  • 1804 views

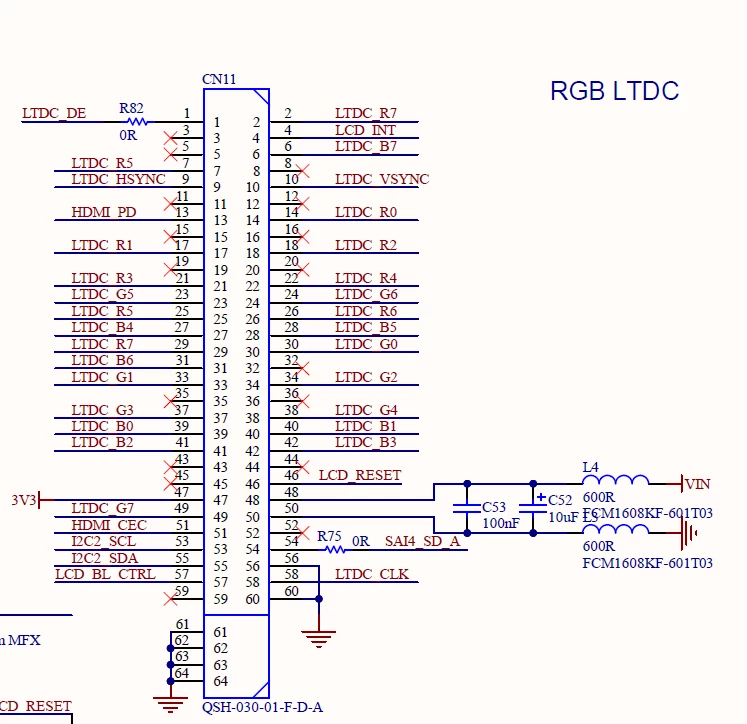

Hi everyone, I want to use other LCD-TFT screen with the STM32MP15X-EVAL board but there is something strange with this connector. There are two duplicated pins, R5 and R7 , but looking for on the board documentation, I can't find anything related with this. What is these pins function?

Thanks in advice.



    This topic has been closed for replies.
    Best answer by PatrickF

    Hi @JManu.1 Cabrera Campos​ ,

    This duplication was intended for internal tests purposes in order to give compatibility with various internal boards shared with other STM32 products.

    On your side, you could safely skip pin 2 and 7.

    Regards.

    In order to give better visibility on the answered topics, please click on 'Select as Best' on the reply which solved your issue or answered your question. See also 'Best Answers'

    1 reply

    PatrickF
    PatrickFBest answer
    Technical Moderator
    June 12, 2023

    Hi @JManu.1 Cabrera Campos​ ,

    This duplication was intended for internal tests purposes in order to give compatibility with various internal boards shared with other STM32 products.

    On your side, you could safely skip pin 2 and 7.

    Regards.

    In order to give better visibility on the answered topics, please click on 'Select as Best' on the reply which solved your issue or answered your question. See also 'Best Answers'

    In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.NEW ! Sidekick STM32 AI agent, see here
    huan_cab
    huan_cabAuthor
    Associate II
    June 12, 2023

    Thank you so much for your answer!
