ADC120 Channel Selection

[kshin.1]

I am using ADC chip ADC120.

​

Data is output, but the channel is not changed, so only IN0 data is output.

​

The SCLK goes low and data is entered in DIN.

SCLK goes low and DOUT is read.

​

I am not sure how to change the channel.

​

Please help.

Thanks.​

[Peter BENSCH]

The ADC120 uses SPI for communication.

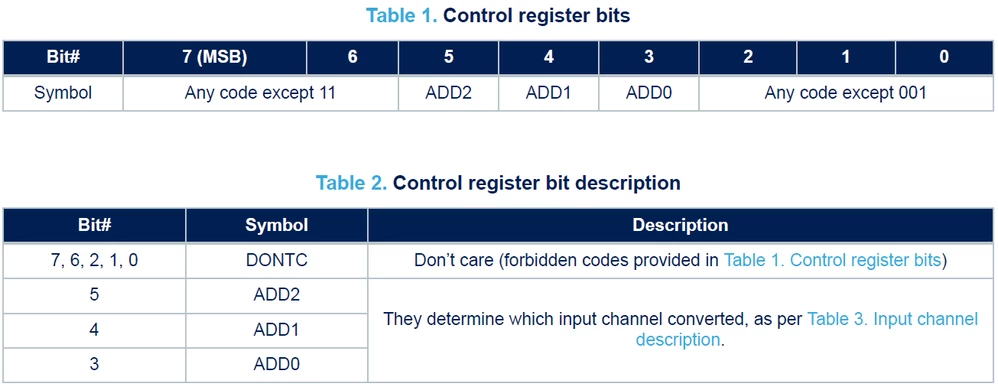

Please have a look at the datasheet, where you will find the control register on pg. 2, which selects the input channel.

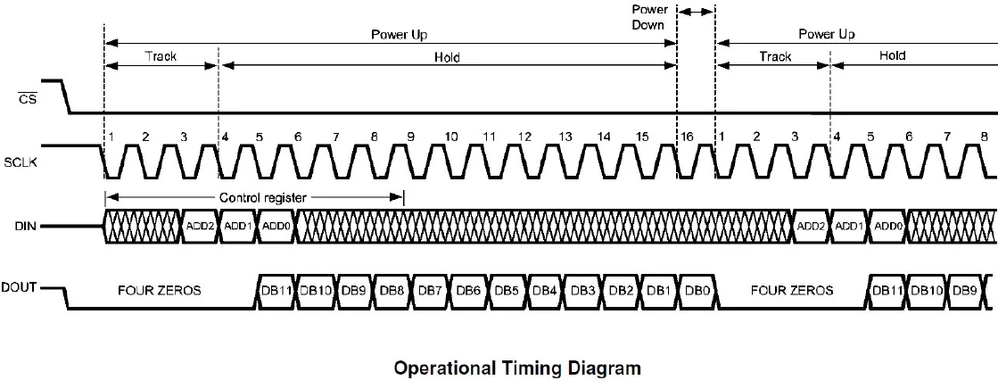

The corresponding timing diagram can be found on page 7:

Good luck!

/Peter

[aksoy_otomasyon]

Hello kshin.1,

 I use ADC120 same with you, but same problem. Did you solve the problem. I change channel but its gives only first ch. May be share basic example code.
Thank you.
