ADC120 channel selection problem

  • November 29, 2023
  • 1 reply
  • 1217 views

 Hi,

  I use ADC120 my new project, but device get only convert first channel. I change channel but its gives only first ch.

There is a ST demo bord at web site but there is a no example code. How can i solve this problem.

I read same topic in this web site, and apply the suggestion soltion but i could not any get result.


Thank you.

This topic has been closed for replies.

1 reply

TDK
Super User
November 30, 2023

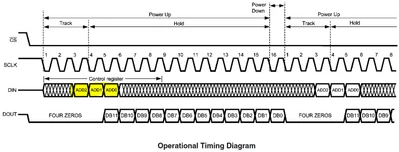

Channels are selected with the ADDx bits. Note the delay of one cycle before that channel is output.
