Data sheet for chip marked EZFT V6294AI MRC021?

[Cal_Harrington]

Hello, and thanks in advance for your help.

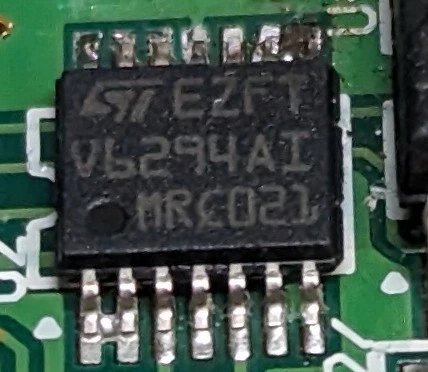

I'm trying to debug (repair) an old circuit board on which we have a 14 pin surface mount chip with the labeling, ST EZFT V6294AI MRC021.

Is this one of your chips? If so, is it possible to get a datasheet, or at least a pinout as a couple of the pads have lifted from my board and I'd like to know if those pins are critical to the functionality, ground, or maybe even NC.

(@Peter BENSCH I saw your reply in this thread about product markings and thought of asking you directly, here, too.)



Thanks very much and Happy New Year to you all.



[Peter BENSCH]

Welcome @Cal_Harrington, to the community!

it is the R2R quad opamp TSV6294AIPT, the product information can be found here. Pin 8 is the output of the 3rd opamp.

Hope that helps?

Good luck!
/Peter

[Cal_Harrington]

Thanks @Peter BENSCH , for the welcome and the answer. That's just the info I needed. Now I need to see if the mfgr of this circuit used the third opAmp.



I appreciate the help.



Hope you have a great new year,

Cal
