Looking for a suitable replacement for Cirrus Logic analogue MEMS microphone WM7121P that is EOL. Have not found any drop in replacement part, any of ST's products that could be a good match?

..

This topic has been closed for replies.

Best answer by Peter BENSCH

It looks like you don't need a mic for ultrasound.

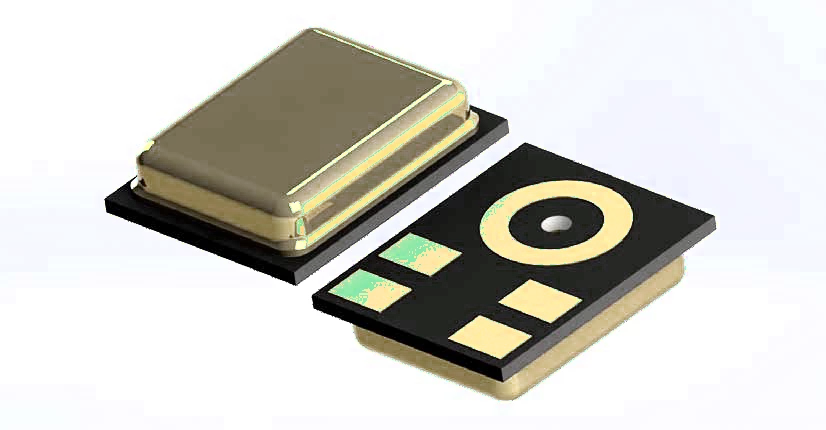

If the replacement should also be analog, ST has exactly one alternative, but not with the port on top, but at the bottom side: MP23ABS1

There are a few options more if you'd be able to use mic with digital output, e.g. the IMP34DF05, which is included in the the 10 years product longevity program.

When your question is answered, please close this topic by choosing Select as Best.

/Peter

Technical Moderator

It looks like you don't need a mic for ultrasound.

If the replacement should also be analog, ST has exactly one alternative, but not with the port on top, but at the bottom side: MP23ABS1

There are a few options more if you'd be able to use mic with digital output, e.g. the IMP34DF05, which is included in the the 10 years product longevity program.

When your question is answered, please close this topic by choosing Select as Best.

/Peter
