STA350BW 2.1 scematic

[russell]

Posted on April 25, 2014 at 13:57

Hi i'm currently using the STA350BW on the demonstration board do you have a  Schematic for 2 (half-bridge) channels + 1 (full-bridge) channel  2.1 mode including recommended component values?

Thanks in advance

[Nickname1623_O]

Posted on April 28, 2014 at 04:25

Hello Russell,

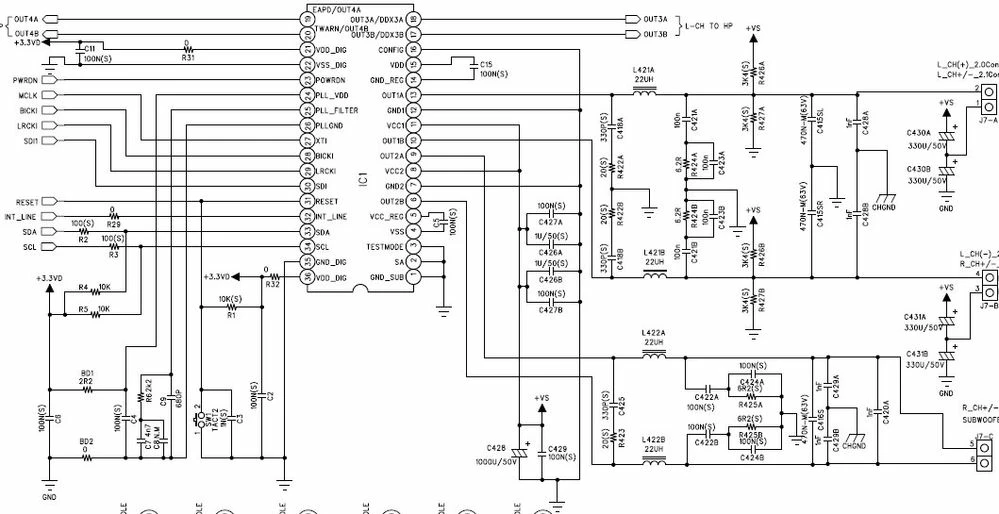

for more detail about STM STA350BW demo board ,you may find it in below .

thanks
