STA540 - diagnostic transistor's GND.

Hello,

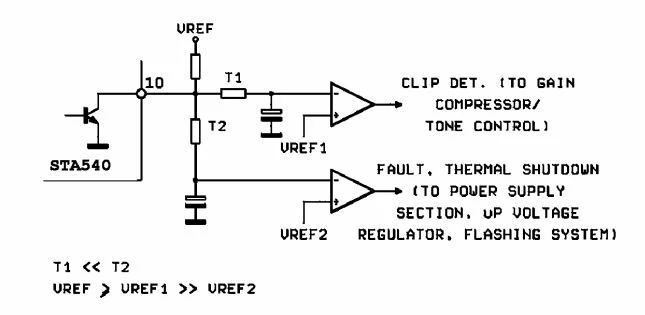

I have a question about transistor's connection to the GND (pin nr.:10).

To which one (SGND or PGND) E of this transistor is connected?

Datasheet: Doc ID 13907 Rev 6, Figure 28.

Thank you,

Przemek
