[Bwang.3]

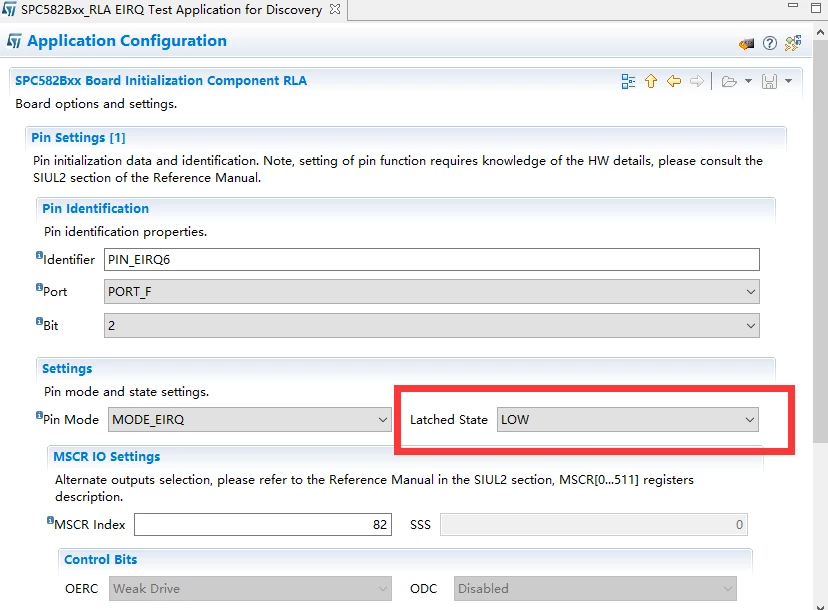

Hello! I would like to ask what is the meaning of setting the Latched state option in the red box as shown in the following figure? I didn't see any specific definition or explanation related to this in the SPC58 reference manual? Can you tell me where to view its related content? Thank you.

[ATROI]

Hi Bwang,

In AutoDevKit Studio the pins are set to latched state Low by default, because a low signal can be used to save energy.

Of course, the pin configuration can be changed according to the needs of your application.

Thanks,

AutoDevKit Team
