AutodevkitStudio How to create a LED-blinking project ?

[Pooja1]

Working with AutodevkitStudio using AEK$MCU-C4M3A and AEK$MCU-SPC5LNKA, how to create a project for led blinking give step by step explaination.







[SRomeo]

Hi Pooja, to create a project from scratch in AutoDevKit you need to follow these steps:



1. Click on "Create new SPC5 application" (on the right)
   And name it as you like.
2. Click on Application Name (on the left) and then Click on the green "+" symbol:

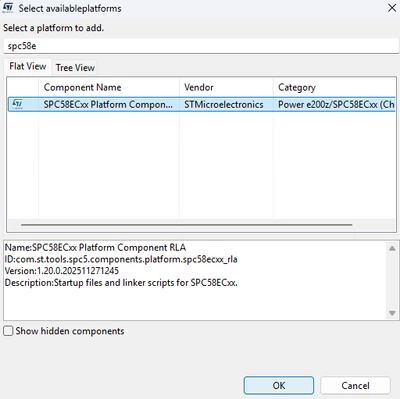

3. Search for "spc58e", select SPC58ECxx Platform Component and click "OK"

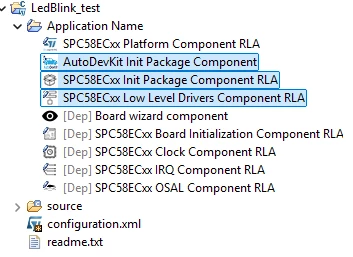

4. Add "AutoDevKit Init Package", "Spc58ECxx Init package" and "SPC58ECxx Low level drivers" as well.
   All other AEK components will be added automatically:

5. Click on to generate automatically component configuration code (main.c included)
6. Double click on main.c (on the left) to open it on the editor.
7. Click on the (on the right) to open the PinMap
8. Now, in order to allocate the correct pins. you need to understand which are the MCU pins wired to a LED for your board.
   You are using an AEK-MCU-C4M3A so take a look to its schematic.





   As you see the board is equipped with 5 LEDs, which may be driven by means of 5 MCU pins.

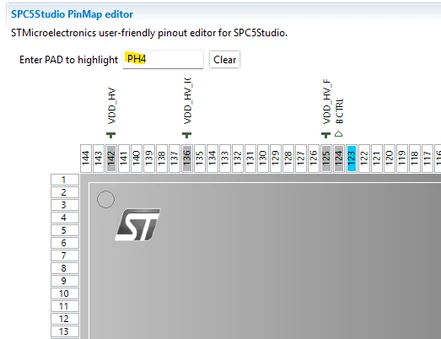

9. Click on the search bar (on the top-left corner)
   and fill with the name of the port/pin combination:



   The pin will automatically be highlighted in blue.

10. Right click on the pin and select:  Input/Output -> SIUL/GPIO

11. Click on Save (Top-left corner) and close the Pinmap Editor.





    Now your MCU pin is allocated.

12. Click on Generate once again to generate your board.h file (this file holds PIN defines)
13. Write the following main code:



    Save and click on  and you are DONE.






    Best regards,
    Simone
    AEK_Team
