Solved

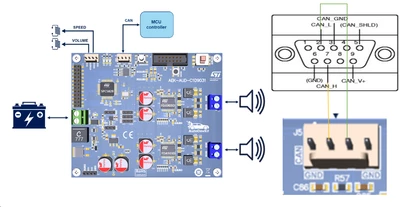

how to connect CAN pins to DB9 connector on "AEK-AUD-C1D9031".
The connections in the picture is ok or should, I want to change any thing.
(note: is it necessary to connect GND to the DB9 connector).
Hi Shiva_Shankar,
the connection you showed are correct.
It is not necessary connect the GND.
AutoDevKit Team
