Where can to find the available demo for the AEK-MOT-WINH92?

  • April 12, 2024
  • 1 reply
  • 805 views

In the AutoDevKit,I can't find the demo of AEK-MOT-WINH92 to drive a motor,so where can i find?

Best answer by Max VIZZINI

Hi,

You need to install online updates of AutoDevKit Studio.

Help>Install New Software


When you finish with the installation, check the "already installed" link in the same location:


You should AutoDevKit Group feature version 2.3.1.xxx


The  import samples from application library button


Select Chorus 4M platform and following examples to import shall appear:


Best Regards,

AutoDevKit Team





1 reply

Max VIZZINI
Max VIZZINIBest answer
Technical Moderator
April 15, 2024

Hi,

You need to install online updates of AutoDevKit Studio.

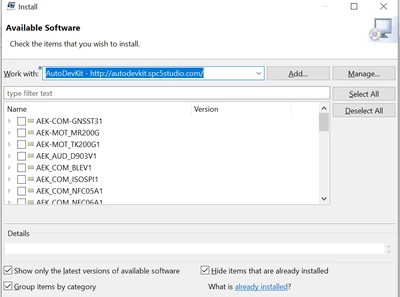

Help>Install New Software


When you finish with the installation, check the "already installed" link in the same location:


You should AutoDevKit Group feature version 2.3.1.xxx

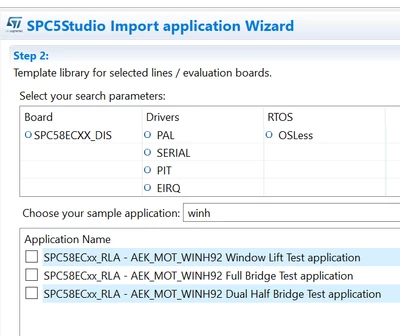

The  import samples from application library button


Select Chorus 4M platform and following examples to import shall appear:


Best Regards,

AutoDevKit Team
