__attribute__ ((aligned (32))) doesn't work.

[HIm]

i'm working with spc570s and using gnu free gccc in spc5studio.

In my program I need to apply __attribute__(( aligned(32))) to an const struct variable.

I tried like this but it does't work.

for example.

typedef struct

{

uint32_t aa;

uint 32_ bb;

...

}A

static const A ***[2]  __attribute__(( aligned(32)))

i want to allocate *** with starting address 0xdddddd00(20,40, 60).

Thank you in advance.

[Ozone]

> I tried like this but it does't work.

How did you determine it doesn't work ?

> i want to allocate *** with starting address 0xdddddd00(20,40, 60).

Not sure what that is supposed to mean.

__align__ (32) means an address divisible by 32, i.e. the least significant 5 bits are zero.

With writing "0xdddddd00", you seem to assume the last 8 bits are zero, i.e. align (256).

[HIm]

​I compiled and checked the address of the variable in the map file. start address of variable is 0xddddddF0.

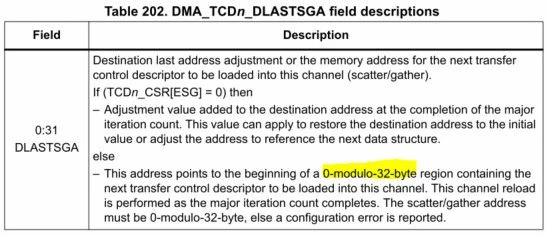

I want the starting address of one of variable to be located at an address that starts with an even number as 32(0x20)byte boundrary( i.e. 0xddddddE0, 0xddddddC0).

[Uwe Bonnes]

No output/errors/warnings from the compiler? What does the compiler do?

[HIm]

​There is no errors/warnings. i'm using GNU GCC in SPC5Studio.

[Ozone]

I don't use SPC tools, or GCC version. Never had such trouble with other gcc tools.

Assuming it might be a compiler/linker bug, have you tried the next larger alignment size, i.e. __attribute__(( aligned(64))) ?

[alister]

First, align the structure, not the variable. See https://gcc.gnu.org/onlinedocs/gcc/Common-Type-Attributes.html#index-aligned-type-attribute. For example

typedef struct
{
 uint32_t first;
 uint32_t second;
} __attribute__((aligned(32))) myStruct_t;

myStruct_t myStruct[2];

Next, control its placement in memory. Your post suggests you've already done this somehow. Otherwise for example

myStruct_t myStruct[2] __attribute__((section(".myDevice")));

And in your linker command file

MEMORY
{
<snip>

 MY_DEVICE (rw) : ORIGIN = 0xdddddd00, LENGTH = 64
}

SECTIONS
{
<snip>

 .myDevice (NOLOAD) :
 {
 *(.myDevice)
 } >MY_DEVICE
}

Finally, as you're accessing a device of some kind and the number and order of bus accesses is probably significant, you ought tell the compiler that with a volatile qualification on each of the structure members, for example

typedef struct
{
 volatile uint32_t first;
 volatile uint32_t second;
} __attribute__((aligned(32))) myStruct_t;

[HIm]

Thank you for your reply​
