Bug in Pinmap Wizard for ADC Use

[nooshin_1382]

Posted on April 05, 2015 at 15:54

Hi

I Want to use ADC of My SPC560B-DIS , first there is not an example for this Dev Board in SPC-Studio but when i want use the other samples for ADC when i want to set ADC pin, in pinmap wizard i have a Warning and the program is not work , i do not know the problem is in my program or the pin map cuase this .

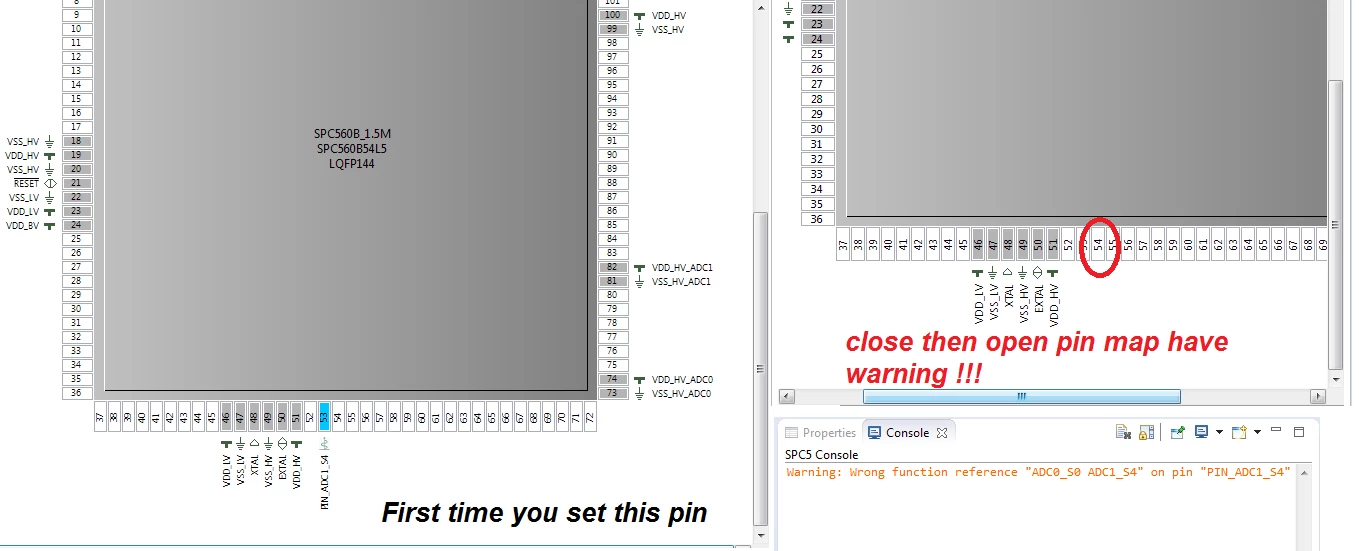

I attach a screenshot in the message .

please help , if any one have an ADC sample for this Dev Borad please send to me .

thanks

with best regards

Vanima

[Nickname2551_O]

Posted on April 07, 2015 at 09:04

Hi Vanima,

I confirm I've got the same error here.

I'm working on it and will let you know as soon as we found a fix for this one.

In the meantime, please note that you can still use the configuration. If you configure the pin, close the pinmap wizard and save your configuration the pion is configured correctly. The pin configuration disappears only when you go again to pinmap wizard.

Keep you informed.

Regards

Philippe

[Nickname2551_O]

Posted on April 07, 2015 at 13:15

Hi,

you can find attached a zip file which contains a patch to be tried.

please replace the two files inC:\SPC5Studio\eclipse\plugins\com.st.tools.spc5.wizard.pinmap.spc5_1.0.0.201503241144\resources\transform

by the files contained in the attached zip file.

Please let me know whether this patch fixes your problem or not.

Best regards

Philippe

________________

Attachments :

transform.zip : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006qV0o&d=%2Fa%2F0X0000000bnq%2F0yYR59ZVIYwRNIB8HnIg5BOKjUGa0kanEVXEP88SJGA&asPdf=false

[nooshin_1382]

Posted on April 07, 2015 at 15:55

Hi Philippe

Thanks for your Response

I copy your file in my SPC-Studio path and the problem is solved thanks so much.

the same problem exist for Flexcan in SPC-Studio and i Speak about this issue with Erwyn

in the other posts i send in SPC Sudio communitie.

please let me know about how can i contact to SPC-studio team about problems of software like problem on xpc560b.h in A/D Section ?

Best regards

NazerianVanima
