Clock and PLL initialization
- March 3, 2017
- 2 replies
- 2643 views
Posted on March 03, 2017 at 21:52
Hi, I amtrying to setup the clocks/PLL on the
SPC570S40E1 microcontroller.I would like use the PLL0 as the system clock.
Here is my configuration:
AC3 SC -> 16Mhz IRSOC
AC2 SC -> PLL1
PLL0 Settings:
PREDIV -> 2
MFD -> 80 RFDPHI -> 10 RFDPHI1 -> 10PLL1 Settings:

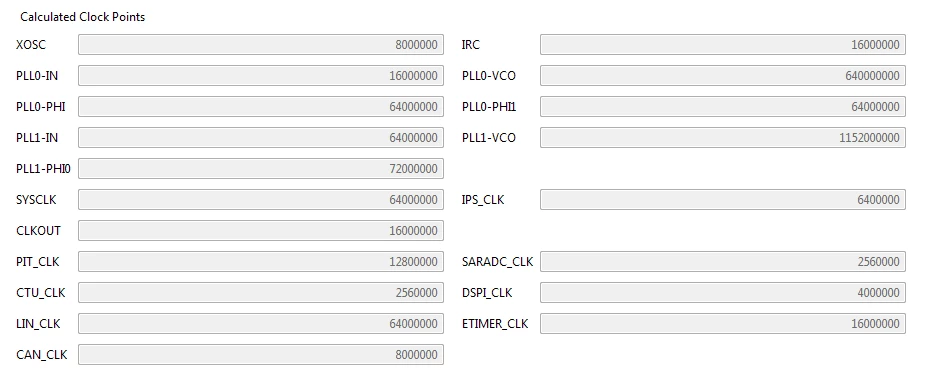

MFD ->18 RFDPHI ->8With the above settings, I get the following clkrates.
Here is my initialization code. Its getting stuck in the while loop waiting for PLL0 to lock. I am following the PLLs initializationprocedure that is recommended in the reference manual.
void spc_clock_init(void) {
/* Waiting for IRC stabilization before attempting anything else.*/
while (MC_ME.GS.B.S_IRC == 0U) {
}
#if (SPC5_NO_INIT == FALSE)
#if SPC5_DISABLE_WATCHDOG
/* SWTs disabled.*/
SWT_2.SR.R = 0xC520U;
SWT_2.SR.R = 0xD928U;
SWT_2.CR.R = 0xFF000002UL;
#endif
/* The system must be in DRUN mode on entry, if this is not the case then
it is considered a serious anomaly.*/
if (MC_ME.GS.B.S_CURRENT_MODE != (uint8_t)SPC5_RUNMODE_DRUN) {
SPC5_CLOCK_FAILURE_HOOK();
}
/* Memory-mapped register definitions incompatible with MISRA rule. */
/*lint -e10 -e40 -e63*/
/* Setting the system dividers to their final values.*/
MC_CGM.SC_DC0.R = SPC5_CGM_SC_DC0_BITS;
MC_CGM.SC_DC1.R = SPC5_CGM_SC_DC1_BITS;
MC_CGM.SC_DC2.R = SPC5_CGM_SC_DC2_BITS;
/* Setting the auxiliary dividers to their final values.*/
MC_CGM.AC0_DC0.R = SPC5_CGM_AC0_DC0_BITS;
MC_CGM.AC0_DC1.R = SPC5_CGM_AC0_DC1_BITS;
MC_CGM.AC0_DC2.R = SPC5_CGM_AC0_DC2_BITS;
MC_CGM.AC0_DC3.R = SPC5_CGM_AC0_DC3_BITS;
MC_CGM.AC0_DC4.R = SPC5_CGM_AC0_DC4_BITS;
MC_CGM.AC0_DC5.R = SPC5_CGM_AC0_DC5_BITS;
MC_CGM.AC1_DC0.R = SPC5_CGM_AC1_DC0_BITS;
/* Setting the clock selectors to their final sources.*/
MC_CGM.AC0_SC.R = SPC5_CGM_AC0_SC_BITS;
MC_CGM.AC1_SC.R = SPC5_CGM_AC1_SC_BITS;
MC_CGM.AC2_SC.R = SPC5_CGM_AC2_SC_BITS;
MC_CGM.AC3_SC.R = SPC5_CGM_AC3_SC_BITS;
/*lint +e10 +e40 +e63*/
/* Enables the XOSC in order to check its functionality before proceeding
with the initialization.*/
MC_ME.DRUN_MC.R = SPC5_ME_MC_SYSCLK_IRC | SPC5_ME_MC_IRCON |
SPC5_ME_MC_XOSCON | SPC5_ME_MC_FLAON_NORMAL |
SPC5_ME_MC_MVRON;
if (SPCSetRunMode(SPC5_RUNMODE_DRUN) == 0) {
SPC5_CLOCK_FAILURE_HOOK();
}
// PLL0 and PLL1 initialization sequence
// Program PLL0 Divider Register
PLLDIG.PLL0DV.R = SPC5_PLL0_DV_RFDPHI1(SPC5_PLL0_RFDPHI1_VALUE) |
SPC5_PLL0_DV_RFDPHI(SPC5_PLL0_RFDPHI_VALUE) |
SPC5_PLL0_DV_PREDIV(SPC5_PLL0_PREDIV_VALUE) |
SPC5_PLL0_DV_MFD(SPC5_PLL0_MFD_VALUE);
// Power up PLL0
MC_ME.DRUN_MC.B.PLL0ON = 1;
// Poll PLL0SR[LOCK] until it asserts
while (PLLDIG.PLL0SR.B.LOCK == 0)
{
}
PLLDIG.PLL1CR.R = 0U;
// Program PLL1 Divider Register
PLLDIG.PLL1DV.R = SPC5_PLL1_DV_RFDPHI(SPC5_PLL1_RFDPHI_VALUE) |
SPC5_PLL1_DV_MFD(SPC5_PLL1_MFD_VALUE);
// Power up PLL1
MC_ME.DRUN_MC.B.PLL1ON = 1;
// Poll Pll1SR[LOCK] until it asserts
while (PLLDIG.PLL1SR.B.LOCK == 0)
{
}
// Engage Normal mode
PLLDIG.PLL0CR.B.CLKCFG = 3U;
PLLDIG.PLL1CR.B.CLKCFG = 3U;
/* Switches to DRUN mode (current mode) in order to update the
settings.*/
if (SPCSetRunMode(SPC5_RUNMODE_DRUN) == 0) {
SPC5_CLOCK_FAILURE_HOOK();
}
/* Run modes initialization, note writes to the MC registers are verified
by a protection mechanism, the operation success is verified at the
end of the sequence.*/
MC_ME.IS.R = 8U; /* Resetting I_ICONF status.*/
MC_ME.ME.R = SPC5_ME_ME_BITS;
MC_ME.SAFE_MC.R = SPC5_ME_SAFE_MC_BITS;
MC_ME.DRUN_MC.R = SPC5_ME_DRUN_MC_BITS;
MC_ME.RUN_MC[0].R = SPC5_ME_RUN0_MC_BITS;
MC_ME.RUN_MC[1].R = SPC5_ME_RUN1_MC_BITS;
MC_ME.RUN_MC[2].R = SPC5_ME_RUN2_MC_BITS;
MC_ME.RUN_MC[3].R = SPC5_ME_RUN3_MC_BITS;
MC_ME.HALT_MC.R = SPC5_ME_HALT0_MC_BITS;
MC_ME.STOP_MC.R = SPC5_ME_STOP0_MC_BITS;
if ((MC_ME.IS.B.I_ICONF & 1U) == 1U) {
/* Configuration rejected.*/
SPC5_CLOCK_FAILURE_HOOK();
}
/* Peripherals run and low power modes initialization.*/
MC_ME.RUN_PC[0].R = SPC5_ME_RUN_PC0_BITS;
MC_ME.RUN_PC[1].R = SPC5_ME_RUN_PC1_BITS;
MC_ME.RUN_PC[2].R = SPC5_ME_RUN_PC2_BITS;
MC_ME.RUN_PC[3].R = SPC5_ME_RUN_PC3_BITS;
MC_ME.RUN_PC[4].R = SPC5_ME_RUN_PC4_BITS;
MC_ME.RUN_PC[5].R = SPC5_ME_RUN_PC5_BITS;
MC_ME.RUN_PC[6].R = SPC5_ME_RUN_PC6_BITS;
MC_ME.RUN_PC[7].R = SPC5_ME_RUN_PC7_BITS;
MC_ME.LP_PC[0].R = SPC5_ME_LP_PC0_BITS;
MC_ME.LP_PC[1].R = SPC5_ME_LP_PC1_BITS;
MC_ME.LP_PC[2].R = SPC5_ME_LP_PC2_BITS;
MC_ME.LP_PC[3].R = SPC5_ME_LP_PC3_BITS;
MC_ME.LP_PC[4].R = SPC5_ME_LP_PC4_BITS;
MC_ME.LP_PC[5].R = SPC5_ME_LP_PC5_BITS;
MC_ME.LP_PC[6].R = SPC5_ME_LP_PC6_BITS;
MC_ME.LP_PC[7].R = SPC5_ME_LP_PC7_BITS;
/* Switches again to DRUN mode (current mode) in order to update the
settings.*/
if (SPCSetRunMode(SPC5_RUNMODE_DRUN) == 0) {
SPC5_CLOCK_FAILURE_HOOK();
}
}�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?�?
