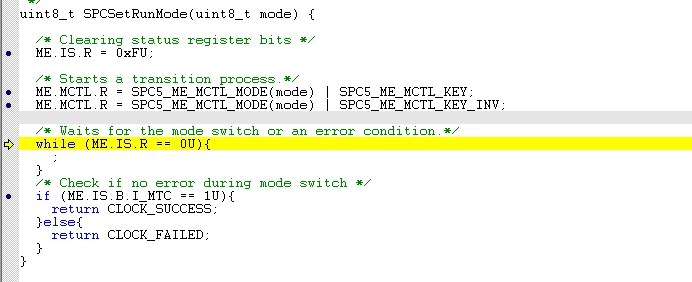

got stuck in SPCSetRunMode() in __early_init()

[ZSQ.1]

my SPC5studio version is 6.0.0,my UDE STK version is 5.0

[ZSQ.1]

I have see other QAs,but i can not find a proper method for my project

[ZSQ.1]

[Erwan YVIN]

Hello ,

For this case , it is often a configuration clock issue.

Which Board do you use ?

Best Regards

Erwan

[ZSQ.1]

and my main function is:

/* Inclusion of the main header files of all the imported components in the
 order specified in the application wizard. The file is generated
 automatically.*/
#include "components.h"
#include "can_lld_cfg.h"

/**
 * FLEXCAN Error callback. Interrupt sources managed are: Bus Off, Error, Tx Warning and Rx Warning.
 *
 * canp Pointer to the @p CAN Driver object triggering the error
 * esr ESR Register Value
 * rx_err_counter Receive Error Counter
 * tx_err_counter Transmit Error Counter
 */
void cfg0_errorcb(CANDriver *canp, uint32_t esr,uint8_t rx_err_counter, uint8_t tx_err_counter){
 /* Put error management code Here */
 (void)canp;
 (void)esr;
 (void)rx_err_counter;
 (void)tx_err_counter;
}

/**
 * FIFO notification callback
 *
 * canp pointer to the @p CAN Driver object triggering the callback
 * crfp RX frame containg data
 */
void cfg0_Fifo_RX(CANDriver *canp, CANRxFrame crfp) {
 if (crfp.IDE == CAN_IDE_EXT && crfp.EID == 0x70U) {
	 // pal_lld_togglepad(PORT_E, PE_LED1);
 }
 if (crfp.IDE == CAN_IDE_STD && crfp.SID == 0x11U) {
	// pal_lld_togglepad(PORT_E, PE_LED2);

 }
 (void)canp;
 }

 /*
 * Application entry point.
 */
 int main(void) {

 CANTxFrame txmsg;
 CANRxFrame rxmsg;

 	/* Initialization of all the imported components in the order specified in
 	 the application wizard. The function is generated automatically.*/
 componentsInit();

 /* Enable Interrupts */
 irqIsrEnable();

 /*
 * Activates the CAN driver 1.
 */
 can_lld_start(&CAND1, &can_config_cfg0);

 /*
 * CAN TX Message structure.
 */
 txmsg.IDE = CAN_IDE_EXT;
 txmsg.RTR = CAN_RTR_DATA;
 txmsg.LENGTH = 8U;
 txmsg.data32[0] = 0x55AA55AAU;
 txmsg.data32[1] = 0x00000000UL;

 /* Application main loop.*/
 for ( ; ; ) {
 txmsg.data32[1]++;

 /* Transmit Can message received by mailbox */
 txmsg.IDE = CAN_IDE_EXT;
 txmsg.EID = 0x8901234UL;
 while (can_lld_transmit(&CAND1, 1, &txmsg) == CAN_MSG_WAIT) {
 }

 /* Transmit Can message received by FIFO */
 txmsg.IDE = CAN_IDE_EXT;
 txmsg.EID = 0x70;
 while (can_lld_transmit(&CAND1, 2, &txmsg) == CAN_MSG_WAIT) {
 	}

 /* Transmit Can message received by mailbox */
 txmsg.IDE = CAN_IDE_STD;
 txmsg.SID = 0x11L;
 while (can_lld_transmit(&CAND1, 3, &txmsg) == CAN_MSG_WAIT) {
 }

 	/*
 	* Receives the RX CAN Message.
 	*/
 if (can_lld_receive(&CAND1, 1, &rxmsg) == CAN_MSG_OK) {
 	// pal_lld_togglepad(PORT_E, PE_LED3);
 }

 osalThreadDelayMilliseconds(250UL);
 }
 }

[ZSQ.1]

i have change the samples code, and i change the platform from SPC560B50L5 to SPC560B50L1,and remove PE_LED1-PE_LED4 in Board Initialization Component. other contents that I have no change.

[ZSQ.1]

I have test the PIT samples code,but it doesn't work as well.

[ZSQ.1]

I have already fixed my problem, the reason is my SPC5studio version, I have replaced it with the version which was provided by ST technology support.​

[ZSQ.1]

after few days using SPC5studio，I found that the way to solve this problem may not be change your SPC5studio version,you can check your frequency of External crystal ， and check whether or not it is corresponding to the Settings of your SPC5studio!!!!

[DKuma.3]

Hi,

May I ask you more details, how you solved the problem.

I am having exactly the same issue.

My target board is SPC582B60E1 (64 pin)

SPC5studio version is 6.0.0 and my UDE STK version is 5.0

Stuck in SPCSetRunMode() in __early_init()

Please share your experience little more elaborate way.

I have checked External oscillator setting as you mentioned. My external oscillator is 40MHz and SPC5 studio setting also have same value.

Regards

D.Kumar

[RG_]

Hi,
I know this is an old post but i am having the same problem.

My target board is also SPC582B. Could you solve the problem and do you still knwo the solution?

Regards
