GTM Low level driver for SPC58xE

[RBosc.1]

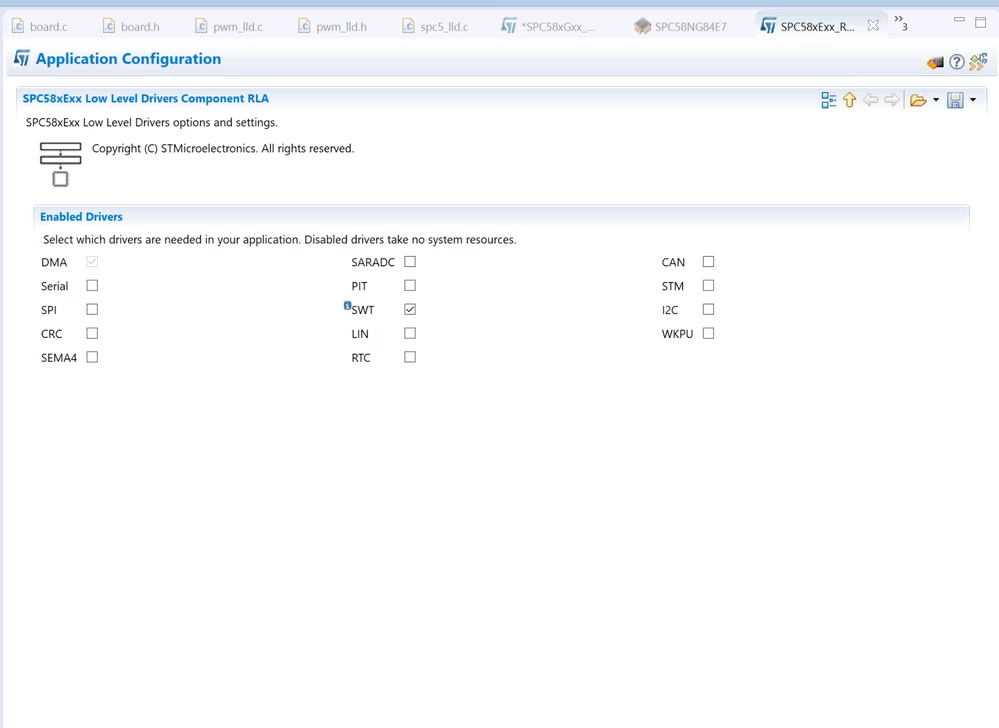

I'm trying to find low level driver for GTM peripher into SPC5 Studio.

I've installed SPC5 studio version 5.8.1 and "SPC58xExx Support" 1.0.0.20200908161213 but I didn't find it.

[Erwan YVIN]

Sorry , i do not ind GTU Peripher in the RM.

Best regards

Erwan

[Erwan YVIN]

It is GTM ?

[RBosc.1]

Sorry, GTM module

[Erwan YVIN]

Hello ,

you can find the drivers :

GTM 1.14.0

• SPC574Kxx, SPC572Lxx: update default value in CMU IP

GTM Premium 2.0.0

• SPC574Kxx, SPC572Lxx:
  • New GTM ARU API
  • Redefine Macro in CRANK Emulation
  • Update Crank Emulation
  • Add priv ptr in DTM module
  • Define GTM-Engine Lib. dependencies

in the following update site :

http://download.spc5studio.com (GTM)

http://gtm.spc5studio.com (GTM Premium credentials needed)

Best regards

Erwan
