Hello, i need ti know which code use to Blink LED on spc57 sphaero board? It is led_test.c file or adc_test.c file?

[Angle]

..

[Erwan YVIN]

Hello Ain ,

you can use the test application

SPC574Sxx_RLA SERIAL Test Application

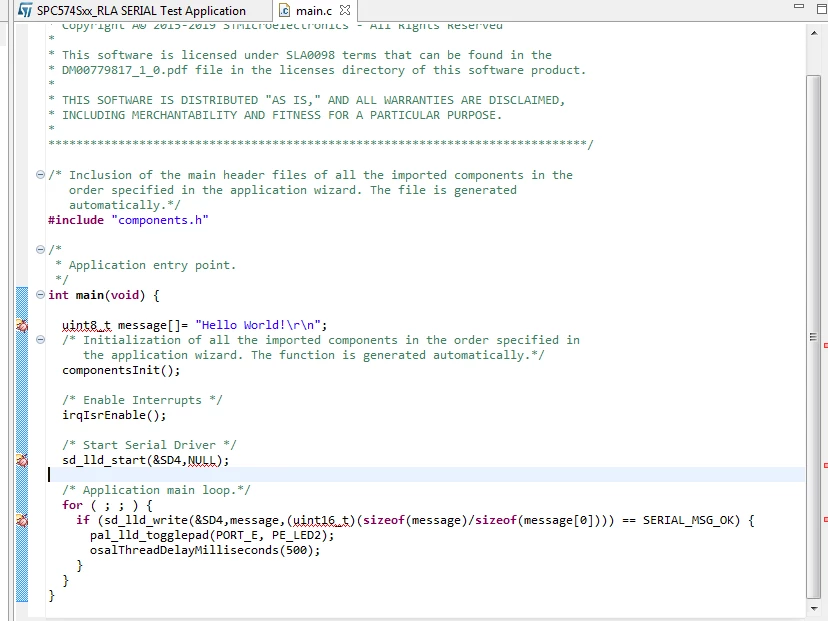

The led blick is the main.c

Best Regards

Erwan

[Angle]

Hello Irwan,

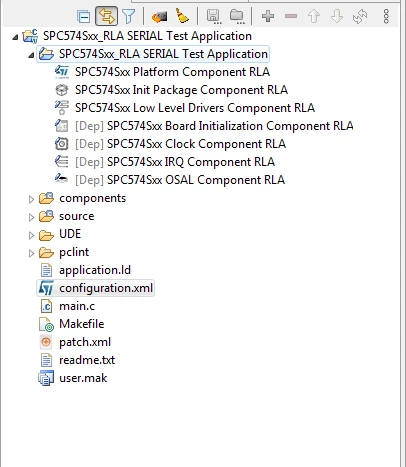

is it this one ? i got confused with the others RLA Test Application

[Erwan YVIN]

You got it ;)

Led is blinking (toogle function) after sending Hello World on UART.

Best Regards

Erwan

[Angle]

okay, but if i want to use the push button to trigger the LED instead of sending Hello World on UART, so which part of the code can i refer/ modified for the push button? I do not understand how write pin declaration for push button on the c code?
