hi everyone, I have SPC-UDESTK-EVAl , but I don't have the pin-out. you can see the JTAG connection at board side, how can I connect SPC-UDESTK-EVAl to this board? BR

..

This topic has been closed for replies.

Best answer by Giuseppe DI-GIORE

Giuseppe DI-GIORE

ST Employee

Hello,

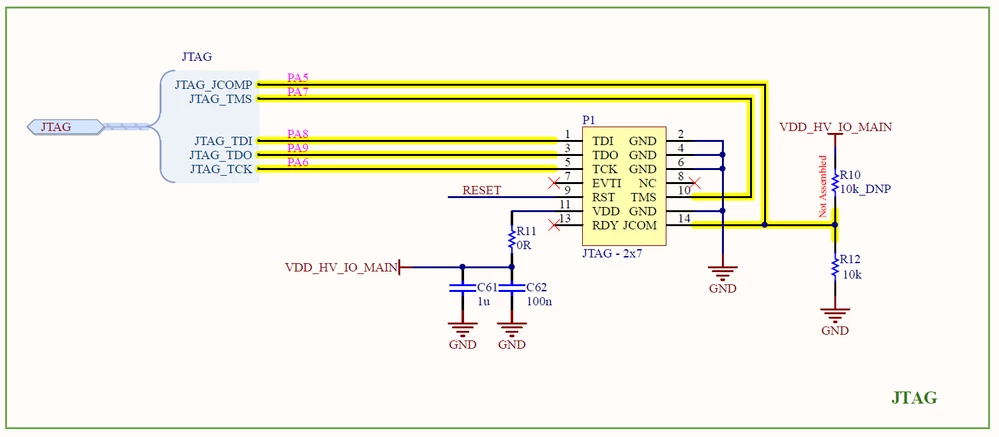

have a look at this schematic and just connect TDI, TDO, TCK, Reset, TMS:

Regards,

Giuseppe

ST Employee

Bgh.1Author

Associate II

thank you for your answer. so don't I need to connect VDD and GND on spc5-UDESTK to VCC ang GND on board?
