How to configure ICU eMIOS0 Channel 22 SPC582B60E1MH00Y?

  • August 7, 2025
  • 0 replies
  • 1158 views

Hi,

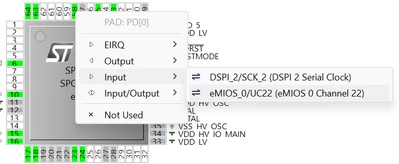

Im new to SPC582 my issue is I need to enable ICU at eMIOS0 Channel 22 , I have enabled the pin in the pin map editor and in the GUI there is channel enabling option for only CH 0 to CH 7 as SAIC but I want it for CH 22, Is there any way to enable the CH 22 as SAIC which comes under Group 2.

And also if any examples is available that would be great. Thank :)

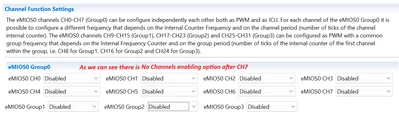

Screenshot 2025-08-07 175333.png
