How to generate UART RX INTERRUPT WITH SPC58EC-DISP

[Orazio]

Hello All,

I am working on UART on SPC58EC-disp Discovery board importing and using example source code "SPC58ECxx_RLA SERIAL DMA Test Application for Discovery" in SPC5Studio.

I can transmit the data but unable to receive the data by interrupt method to avoid blocking.

In the original project, I have only changed, in the main.c file,  the two highlighted row as follow:

#include "components.h"

#include "serial_lld_cfg.h"

void sddmatxcb(SerialDriver *sdp) {

 (void)sdp;

 pal_lld_togglepad(PORT_F, PF_LED1);

}

void sddmarxcb(SerialDriver *sdp) {

 (void)sdp;

 pal_lld_togglepad(PORT_F, PF_LED2);

}

int main(void) {

 uint8_t message[]= "Hello World!\r\n";

 /* Enable Interrupts */

 irqIsrEnable();

 sd_lld_start(&SD1, &serial_config_sddmacfg);

 /* Application main loop.*/

 for ( ; ; ) {

  (void)sd_lld_write(&SD1,message,(uint16_t)(sizeof(message)/sizeof(message[0])));

  osalThreadDelayMilliseconds(1500);

  //pal_lld_togglepad(PORT_F, PF_LED2);

 }

}

Doing Debug firmware with UDE STK 5.0, and putting a breakpoint in "sddmarxcb" callback function, i observe that never entry in this function. Please guide me with Rx interrupt initialization so that I can receive the data without blocking.

Thank You,

Orazio

[Orazio]

I would like to add more details.

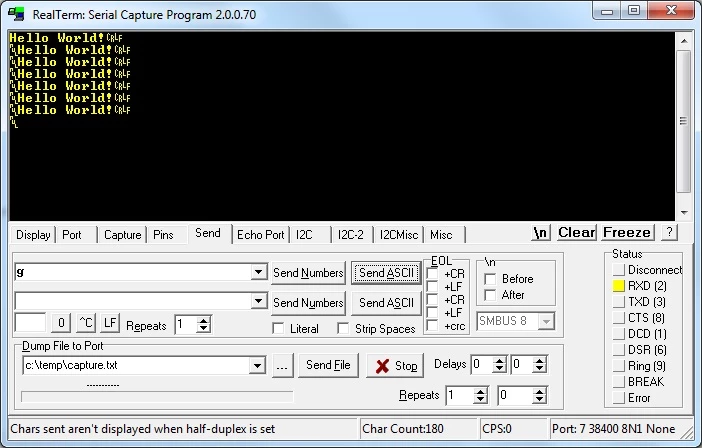

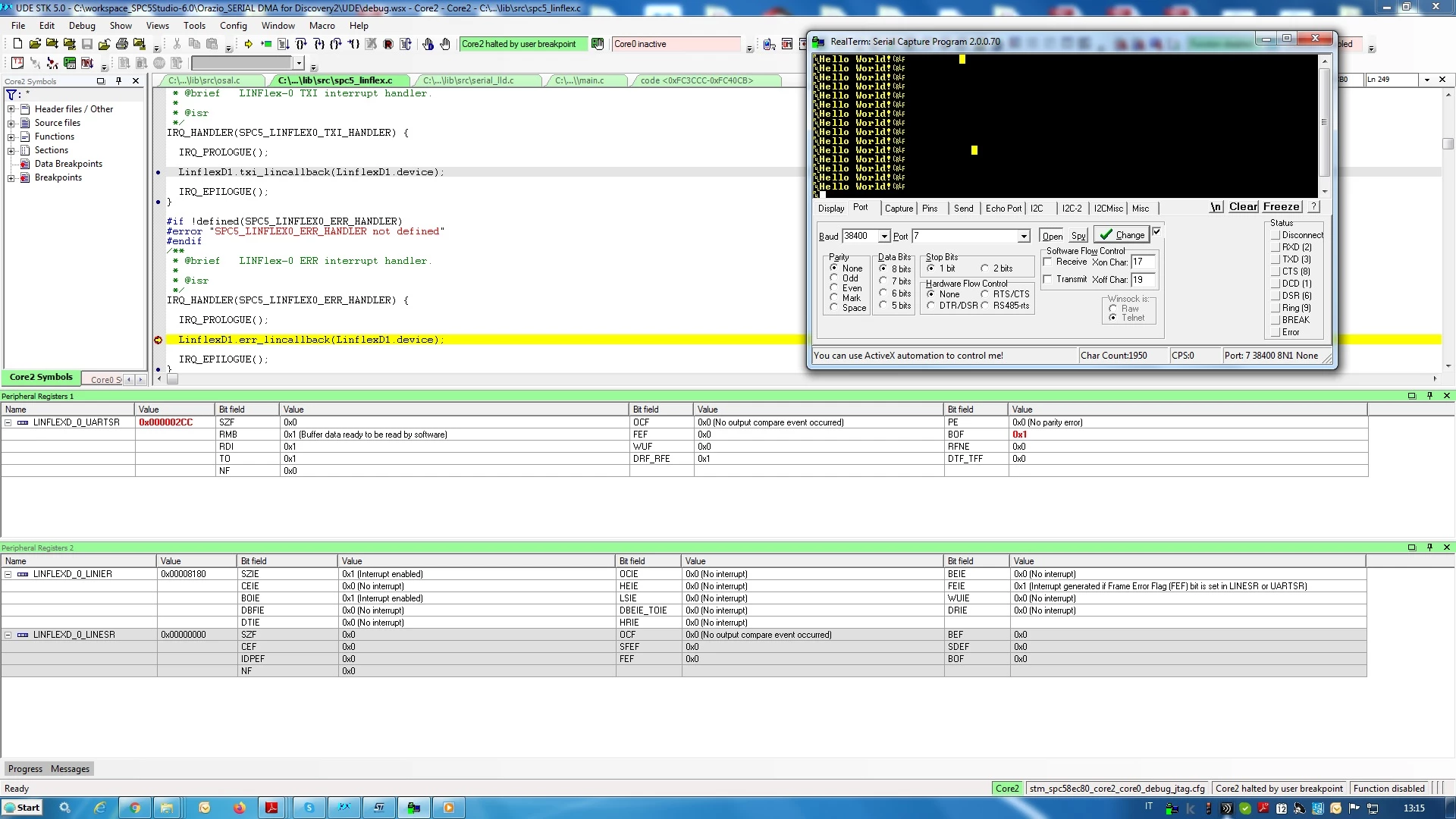

Debugging fw with UDE STK 5.0 and putting a breakpoint in "spc5_linflex.c" file and exactly in IRQ_HANDLER(SPC5_LINFLEX0_ERR_HANDLER) function

I observe that arrive in this function . So it means that when i send a byte in rx channel, it rise an error interrupt managed by SPC5_LINFLEX0_ERR_HANDLER.

But i don't understand the cause. Can some one help me ?

IRQ_HANDLER(SPC5_LINFLEX0_ERR_HANDLER) {

 IRQ_PROLOGUE();

 LinflexD1.err_lincallback(LinflexD1.device);

 IRQ_EPILOGUE();

}

[Orazio]

..

[Orazio]

I changed the code, as indicated in the attached file. Now the uart is able to receive the data and to enter the "sddmarxcb" callback function but only once.

Any suggestions ?

Thanks

#include "components.h"

#include "serial_lld_cfg.h"

#include <string.h>

uint8_t typedChar[1] = " ";

void sddmatxcb(SerialDriver *sdp) {

 (void)sdp;

 pal_lld_togglepad(PORT_F, PF_LED1);

}

void sddmarxcb(SerialDriver *sdp) {

 (void)sdp;

 pal_lld_togglepad(PORT_F, PF_LED2);

 (void)sd_lld_read(&SD1, typedChar, 1);

}

int main(void) {

 char message[64];

 componentsInit();

 /* Enable Interrupts */

 irqIsrEnable();

 /*

  * Activates the serial driver 1 using the driver default configuration.

  */

 sd_lld_start(&SD1, &serial_config_sddmacfg);



 (void)sd_lld_read(&SD1, typedChar, 1);



 /* Application main loop.*/

 for ( ; ; ) {

strncpy (message, "Type a character - Last char typed was :", sizeof("Type a character - Last char typed was :"));//uint8_t message[]= "Hello World!\r\n";

  strcat(message, (char *)typedChar);

  strcat(message, "\r\n");

  (void)sd_lld_write(&SD1, (uint8_t *) message,(uint16_t)(sizeof(message)/sizeof(message[0])));

  osalThreadDelayMilliseconds(1500);

 }

}

[Orazio]

In this post, someone describe the same issue.

https://community.st.com/s/question/0D53W000005pnUKSAY/how-can-i-programming-uart-interruptsdlldread

Please Erwan YVIN can you explaine how to adapt the driver, so to have interrupts run whenever I receive data?

1. **
2. * @brief Serial read without DMA
3. *
4. * @param[in] sdp pointer to a @p SerialDriver object
5. * @param[out] buffer data buffer receiver
6. * @param[out] len number of bytes received
7. *
8. * @return The number of bytes effectively read.
9. *
10. * @notapi
11. */

static uint16_t sd_rx(SerialDriver* sdp, uint8_t* buffer, uint16_t len)

[Orazio]

Hi to all. Thanks a lot for the support received.

I have solved my issue, using a workaround. I would share the solution for two reasons. First one oriented to have a feedback from you about the actions applied by me to adapt the driver. Second one oriented to share a solution for otherone afflicted by the same issue.

The work around consist in adapt spc5xx_serve_rxi interrupt function in the serial_lld.c file as follow

/**

 * @brief Common RXI IRQ handler.

 *

 * @param[in] sdp pointer to a @p SerialDriver object

 */

static void spc5xx_serve_rxi_interrupt(uint32_t isdp) {

 SerialDriver *sdp = (SerialDriver *) isdp;

 uint16_t sr = sdp->linflexlp->UARTSR.R;



 sdp->linflexlp->UARTSR.R = (uint16_t)(SPC5_UARTSR_NF | SPC5_UARTSR_DRF | SPC5_UARTSR_PE0);



 if ((sr & SPC5_UARTSR_DRF) == SPC5_UARTSR_DRF) {

 if(sdp->config->api_mode != SPC5_LIN_API_MODE_BUFFERED_IO) {

 *sdp->rx_buf = (uint8_t)sdp->linflexlp->BDRM.B.DATA4;

 //sdp->rx_buf++; // opistara 2021-02-17

 sdp->linflexlp->UARTSR.R = (uint16_t)SPC5_UARTSR_RMB;

 //sdp->rx_len--; // opistara 2021-02-17

 sdp->rx_len = 0; // opistara 2021-02-17



 if (sdp->rx_len == 0UL) {

 //sdp->linflexlp->UARTCR.B.RXEN = 0; // opistara 2021-02-17

 //sdp->linflexlp->LINIER.B.DRIE = 0; /* Interrupts disabled. */ // opistara 2021-02-17

 if (sdp->linflexlp->UARTCR.B.TXEN == 0UL) {

 sdp->linflexlp->LINIER.R &= ~((uint16_t)(SPC5_LIN_INTERRUPTS));

 }



 /* Call the related callback.*/

 if (sdp->config->rx_end_cb != NULL){

 sdp->config->rx_end_cb(sdp);

 }



 SPC5_LIN_RX_DONE(sdp);

 }

 } else {

 *sdp->rx_write_ptr = (uint8_t)sdp->linflexlp->BDRM.B.DATA4;

 sdp->rx_write_ptr++;

 if (sdp->rx_write_ptr == sdp->rx_end_ptr) {

 sdp->rx_write_ptr = sdp->rx_buffered_io;

 }

 if (sdp->rx_write_ptr == sdp->rx_read_ptr) {

 sdp->rx_read_ptr++;

 if (sdp->rx_read_ptr == sdp->rx_end_ptr) {

 sdp->rx_read_ptr = sdp->rx_buffered_io;

 }

 }

 }

 }

}


I attach both main.c and serial_ldd.c file.

/****************************************************************************
*
* Copyright © 2018-2019 STMicroelectronics - All Rights Reserved
*
* License terms: STMicroelectronics Proprietary in accordance with licensing
* terms SLA0089 at www.st.com.
*
* THIS SOFTWARE IS DISTRIBUTED "AS IS," AND ALL WARRANTIES ARE DISCLAIMED,
* INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
*
* EVALUATION ONLY – NOT FOR USE IN PRODUCTION
*****************************************************************************/

/* Inclusion of the main header files of all the imported components in the
 order specified in the application wizard. The file is generated
 automatically.*/
#include "components.h"

#include "serial_lld_cfg.h"
#include <string.h>

uint8_t typedChar[1] = " ";
char message[64];
char text[50];


void sddmatxcb(SerialDriver *sdp) {
 (void)sdp;
 pal_lld_togglepad(PORT_F, PF_LED1);
}



void sddmarxcb(SerialDriver *sdp) {
 (void)sdp;
 pal_lld_togglepad(PORT_F, PF_LED2);
 if (typedChar[0] == 33) strncpy (text, "", sizeof("")); //ascii code for ! is 33
 else strcat(text, (char *)typedChar);
}




/*
 * Application entry point.
 */
int main(void) {


 /* Initialization of all the imported components in the order specified in
 the application wizard. The function is generated automatically.*/
 componentsInit();

 /* Enable Interrupts */
 irqIsrEnable();

 /*
 * Activates the serial driver 1 using the driver default configuration.
 */
 sd_lld_start(&SD5, &serial_config_sddmacfg);
 (void)sd_lld_read(&SD5, typedChar, 1);



 /* Application main loop.*/
 for ( ; ; ) {
	strncpy (message, "\r\nType a char (! to clear Text) - Last char typed was:", sizeof("\r\nType a char (! to clear Text) - Last char typed was:"));//uint8_t message[]= "Hello World!\r\n";
 strcat(message, (char *)typedChar);
 strcat(message, "\r\nText: ");

 (void)sd_lld_write(&SD5, (uint8_t *) message, (uint16_t) strlen(message) );

 osalThreadDelayMilliseconds(100);

 (void)sd_lld_write(&SD5, (uint8_t *) text, (uint16_t) strlen(text) );

 osalThreadDelayMilliseconds(1500);
 }
}

I will check your feedback regarding the workaround adopted.

Thank you very much.

[Erwan YVIN]

Hello ,

Sorry for the late answer ;)

Good to see that your have solved your issue.

Adapt the driver is a good choice.

For the big project relative to collect some data coming from UART. (Near-space balloon, Automotive project and so on ..)

we are using :

• Chibios / FreeRTOS threads to save CPU

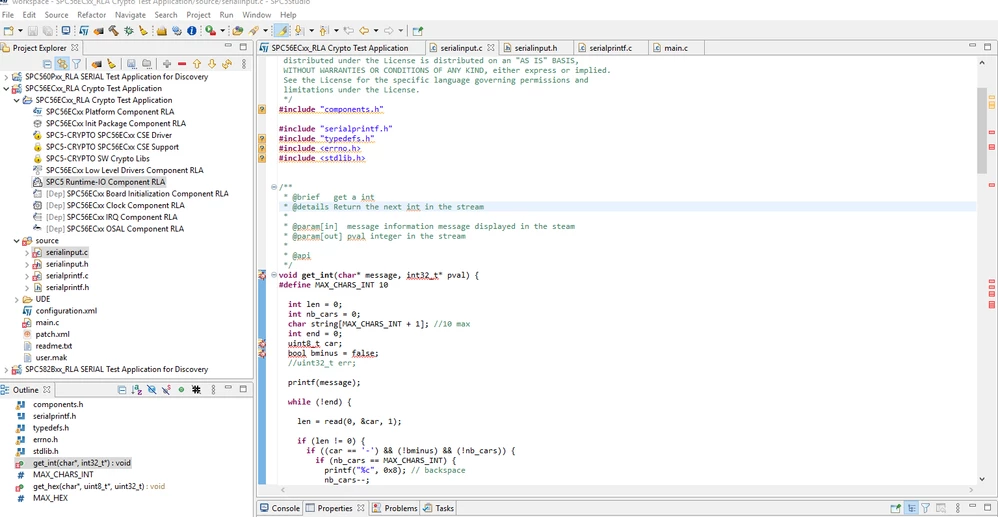

• some functions serial_input.c / .h with Runtime Components (cf Screenshot)



Best Regards

Erwan
