how to resolve LIN receive error, sync error and framing error for SPC560B54L5?

[rpoon]

Hello,

I am working with lin sample driver application. I am able to send and receive data but in between lin i am getting the following error

1. sync error
2. rcv error due to invalid header
3. framing error
4. short response
5. invalid checksum

I have done the testing with canoe by keeping spc560b in master mode .

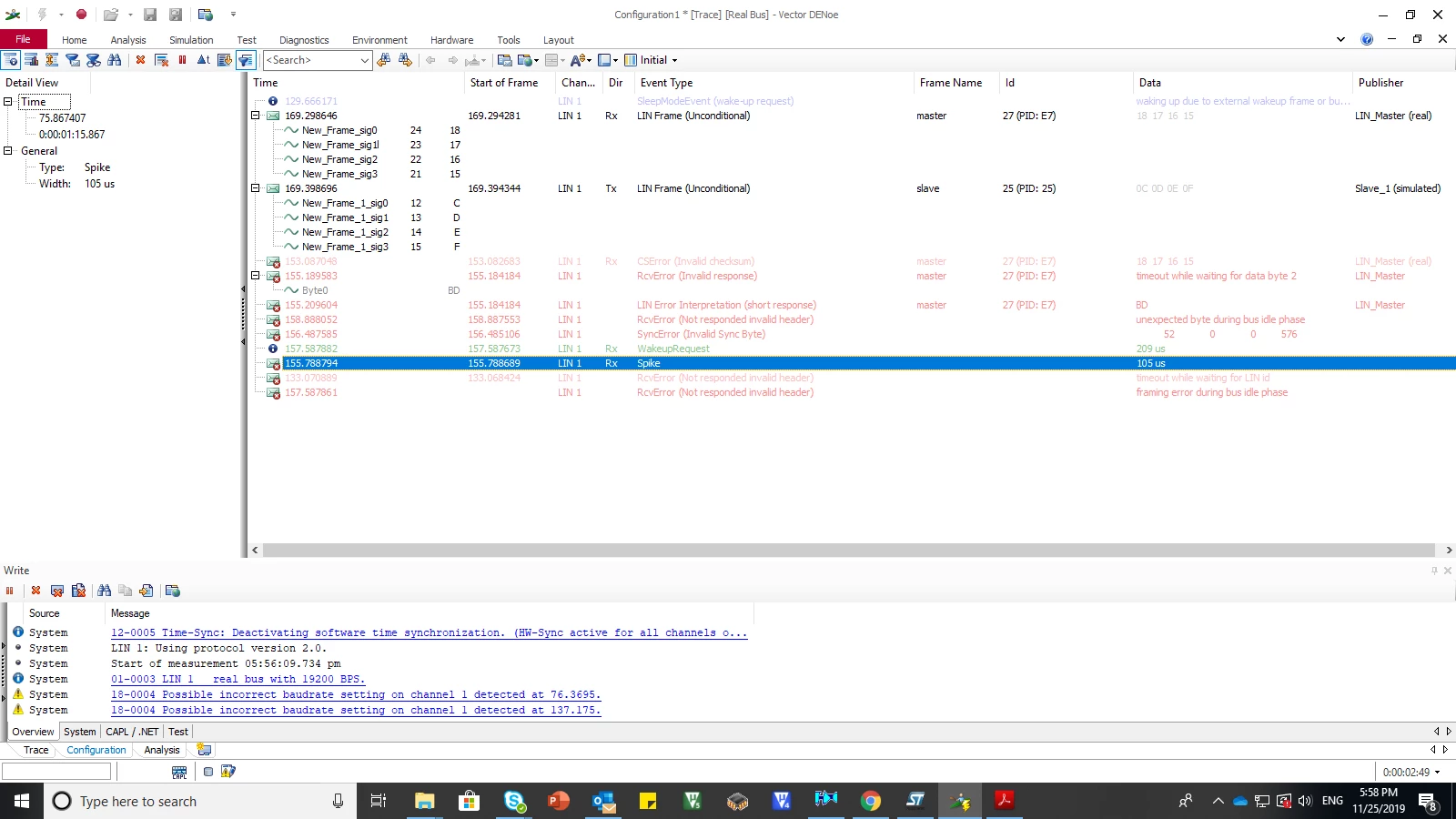

i am attaching the screen shot, how can i resolve these errors?

Thank you

[SHire.11]

Hello rpoon,

can you able to resolve the above issue? since i am facing exactly similar issue in SPC58xx.

It could be great if you post solution for this.

in my understanding, LIN driver status is LIN_RX_ERROR, when Erroneous response reception such as:

- Framing error - Overrun error - Checksum error or - Short response

[Erwan YVIN]

Hello ,

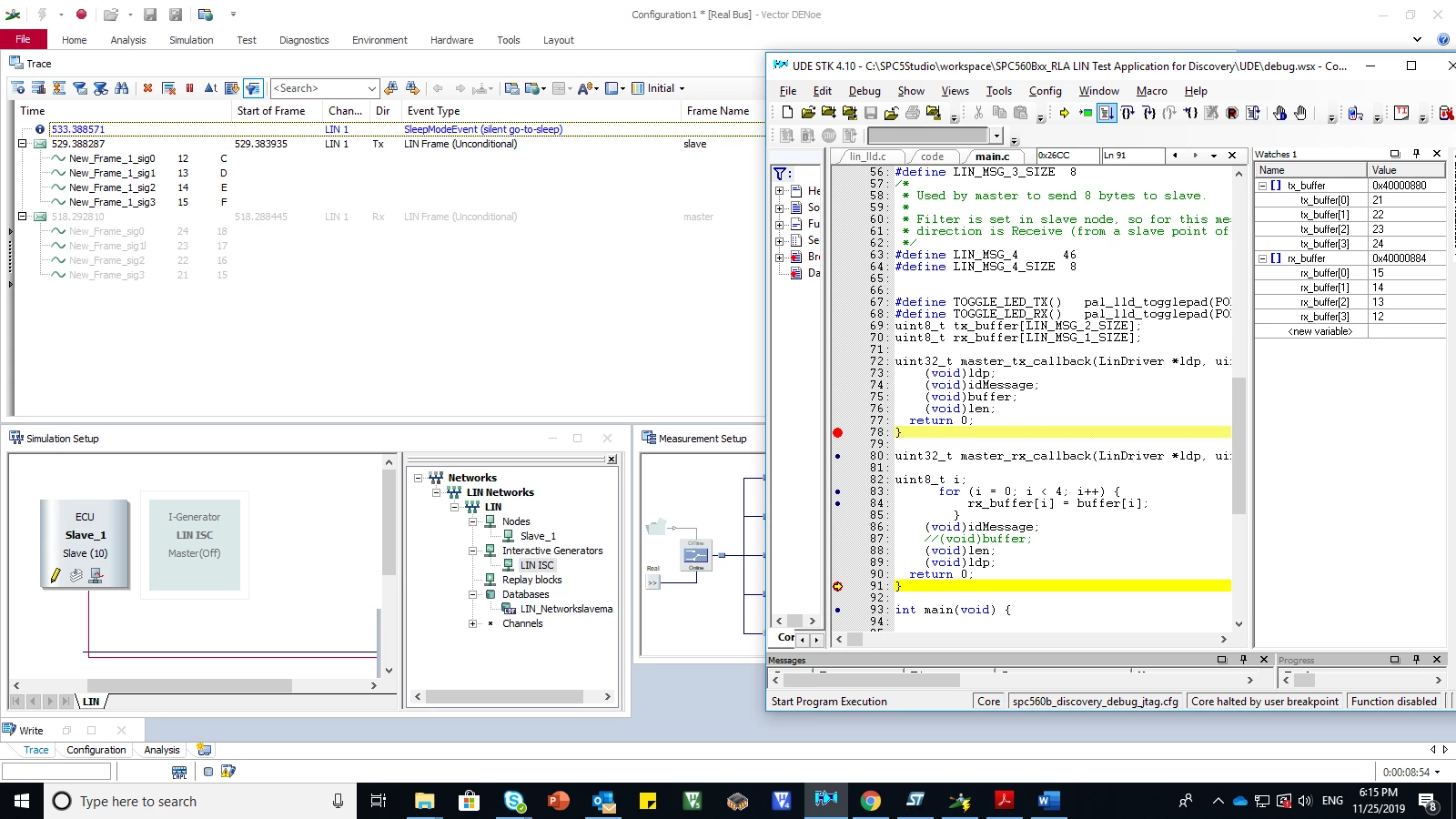

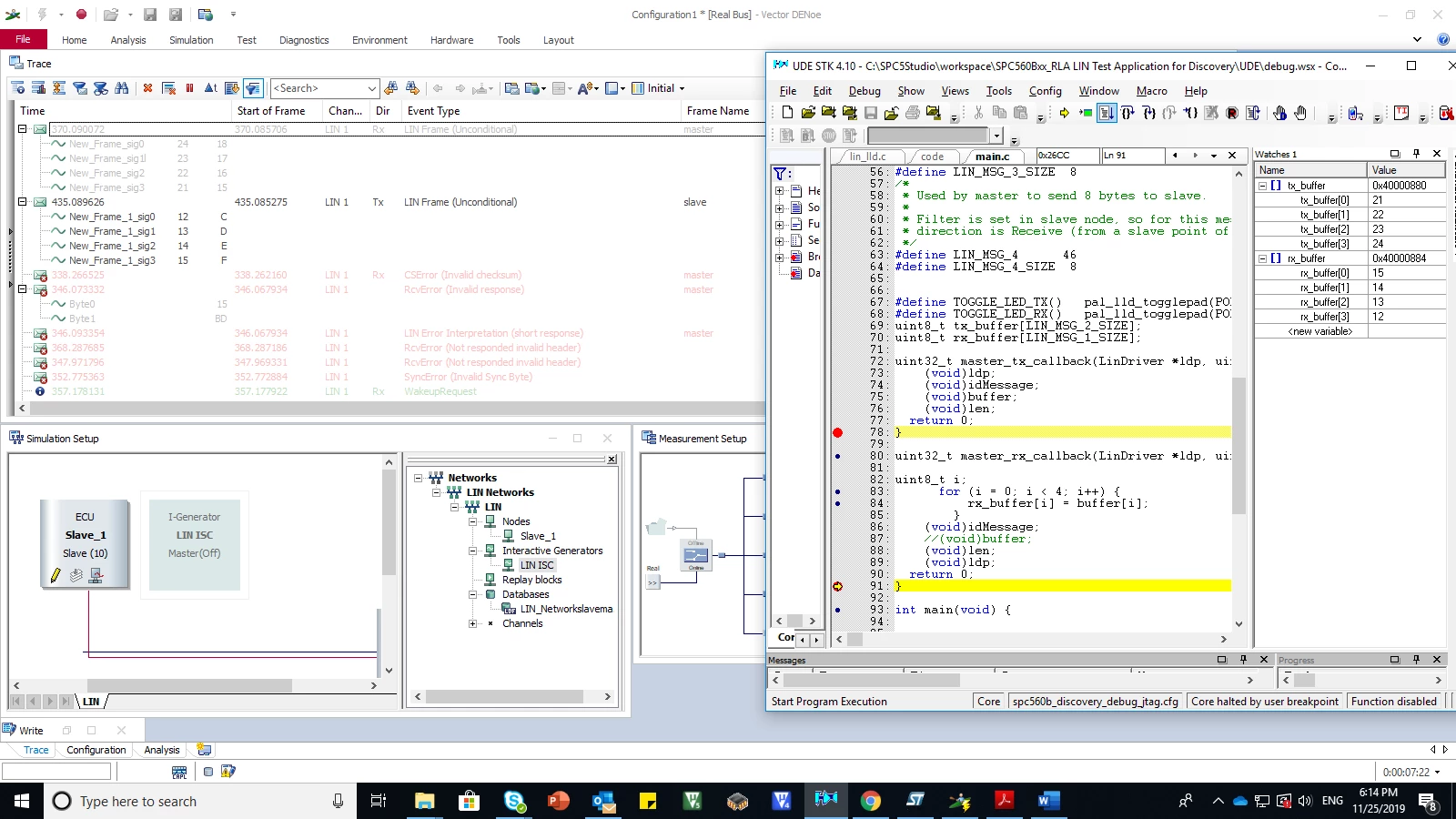

The second screenshot seems to see the baudrate issue

I recommend you to use the last version of SPC5Studio

Since 2019 , we have updated the LIN Drivers inside SPC5Studio tools suite.

   Best Regards

                  Erwan
