How to use “Execute and debug your application�? in SPC5 Studio?

[YeFly]

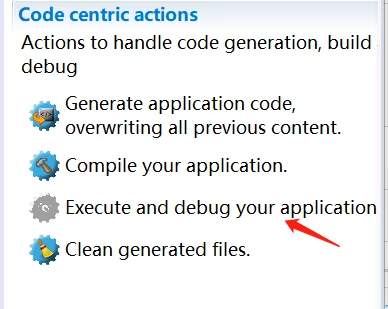

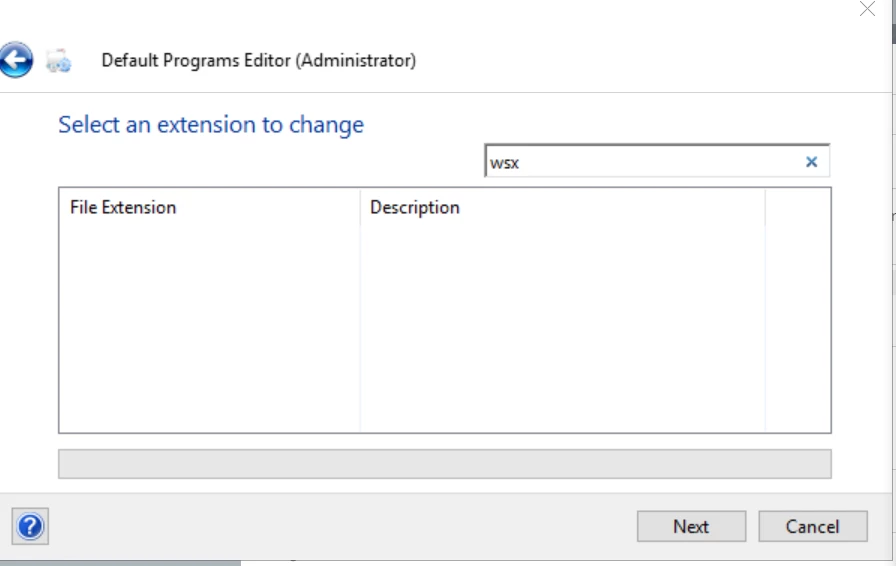

The actual situation is shown in Figure 1. I try to solve this problem in “Default Programs Editor�?，but I didn't find the “wsx�? file in Figure 2. Is there any way to solve it?

[Erwan YVIN]

Hello ,

you should install PLS UDE Tool (cf Help section)

There is a tutorial inside

Best Regards

Erwan

[Gkash.1]

I have also done the same .but debug button is not activating.

[Pradnya]

Hi,

1.To execute and debug your application:

Go to C drive> SPC5STUDIO > workspace>"Project Name"> UDE> right click on "degug"> open with "UDE Visual platform"> click on check box for "always use this app to open .wsx file

2.Restart the app

3.Now in SPC5 Studio>"Execute and debug your

application" will activate

Regards,

Pradnya

[Aparna]

I am able to get the path what you explained in above.

[VLELE.1]

@Aparna​ i am struggling with the same thing. were you able to solve it?

@Pradnya​ i am not able to find UDE visual platform

[SLenk.1]

It works only to light up the icon. Just launch UDE STK debugger, click File > Open Workspace and select 'Project\UDE\debug.wsx' file.

[YLin.2]

I found an offical guide by pls to integrate the UDE STK debugger to SPC5Studio. It shoud be in C:\Program Files (x86)\pls\UDE Starterkit 5.0\Help\UDEEclipsePlatform.chm
