I want to use EEPROM Emulation on the data flash in a SPC560P34L1. Will someone please point me to detailed instructions or examples

[JTesk]

I have some examples that I acquired through Google searches. There is some trouble right away with trying to init the data flash memory. The ECC will not allow initial writing and gens an IVOR2 fault.

[Erwan YVIN]

Hello ,

We are maintaning SPC560Pxx_RLA EE Test Application for Discovery in SPC5Studio Tools Suite

and SPC560Bxx_RLA ECC Test Application for Discovery

you should mix thiese 2 applications.

Best Regards

Erwan

[JTesk]

I cannot find a way to access these test applications. Please provide further explanation to gain access.

Thanks

[Erwan YVIN]

Please install SPC5Studio Tools Suite

https://www.st.com/en/development-tools/spc5-studio.html

and install them from http://download.spc5studio.com/

The address component location are in this web address

Best Regards

Erwan

[JTesk]

I have already installed SPC5Studio. I am puzzled by where to navigate to inside the tool to find the two articles you named. Again, please provide further detail on where to access them.

[Erwan YVIN]

Hello James ,

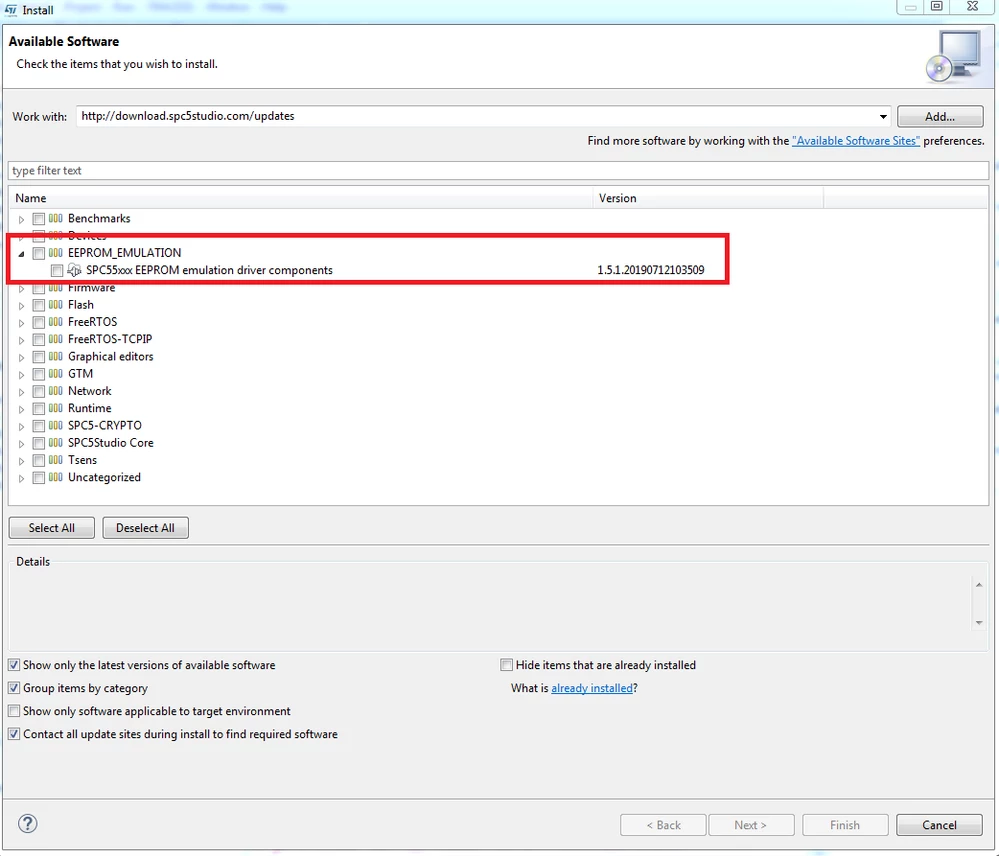

you should install EEPROM Components using the Eclipse Update Site mecanism

(cf screenshot)

Help ==> Install new Software

Update Sites are used to organize and export features so they can be installed into Eclipse applications.

There is a useful help section

Best regards

Erwan
