Is there any interconnection / relation between port F12 and F13 on SPC560P Disp?

[RatheeshT]

Hi Technical team.

I want to configure both F12 and F13 as input pin.

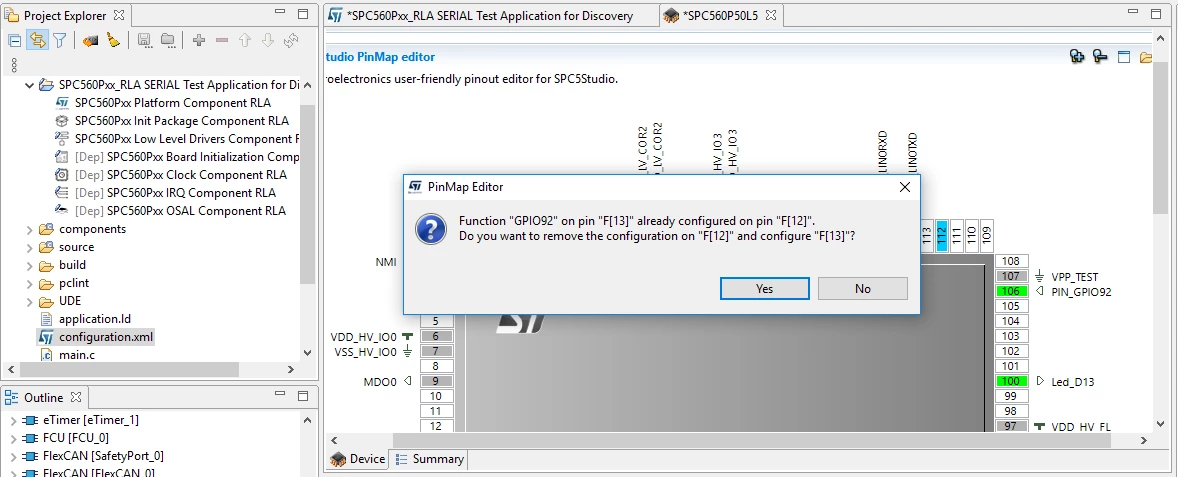

When i am trying to configure F12 and F13 as input pin in PinMap Editor , it gives error (attached the error screen).

I tried this on sample project "SPC560Pxx_RLA SERIAL Test Application for Discovery".

Hardware used : SPC560P Disp

Please suggest me your ideas to solve this issue

[Erwan YVIN]

Yes ,

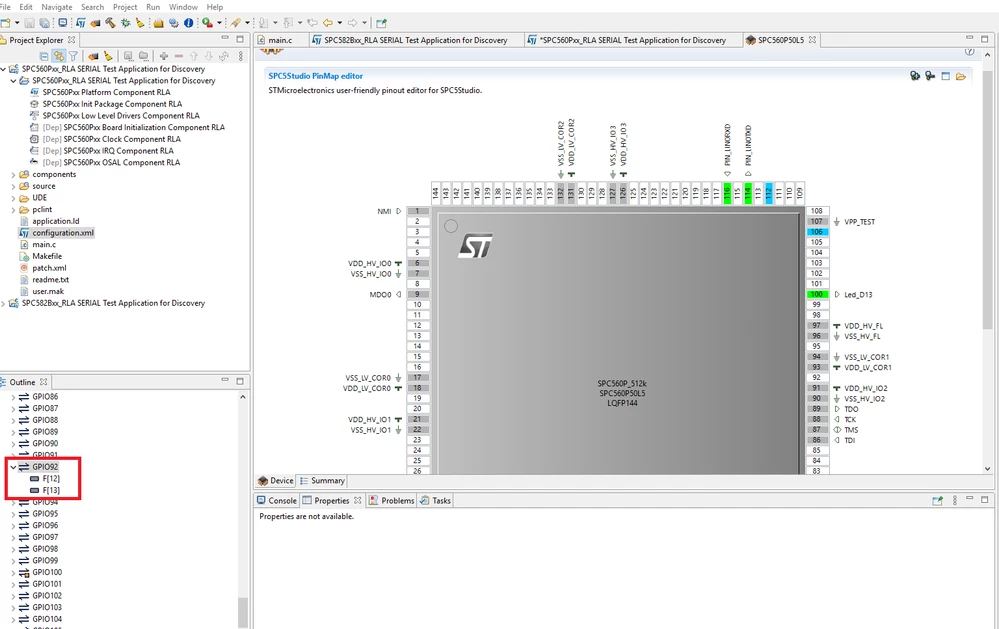

You have tried to configure F[12] and F[13] to the same GPIO

cf Screenshot and reference manual

Best Regards

Erwan

[RatheeshT]

Thanks for your immediate response

From above conversation, My understanding is below,

Port F12 and F13 are not available to configure/use as GPIO pin at the same time in the application

We can use/configure either F12 or F13 only as GPIO at the same time .

is my understanding correct?

or

If my understanding is not correct, Please provide the procedure to configure both F12 and F13 pins as GPIO in SPC5Stusio.

Thanks in advance

[RatheeshT]

Hello Erwan,

Could you please provide your opinion on this.

[Erwan YVIN]

Hello Ratheesh ,

Cf reference manual,

It is not possible to configure F12 and F13 with the same function (Ex: GPIO92).

Best regards

Erwan

[RatheeshT]

Hello Erwan,

Thanks for your support, I am closing this ticket. It is best
