Problem in connecting to the target SPC560Bxx Disc board

  • May 28, 2019
  • 2 replies
  • 927 views


    This topic has been closed for replies.
    Best answer by Erwan YVIN

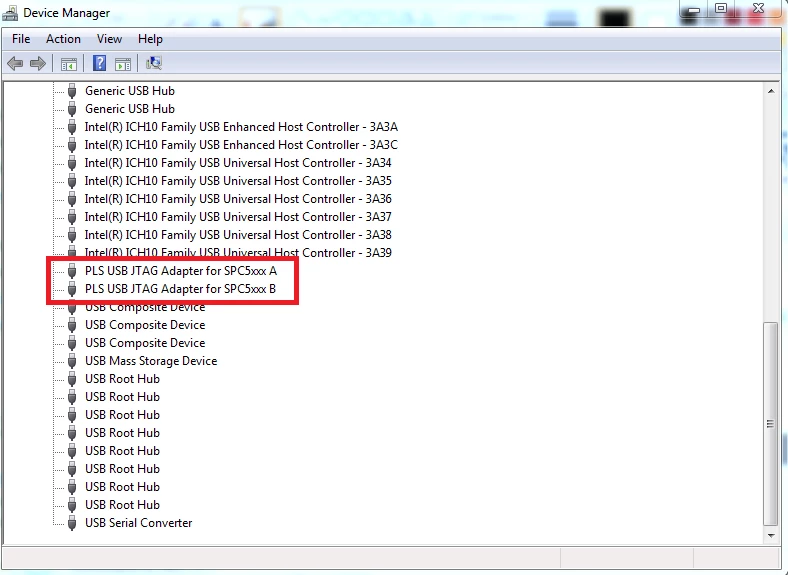

    Hello , Could you check your device manager ?

    You should see PLS USB JTAG


    if not , install the drivers located in

    c:\Program Files (x86)\pls\UDE 4.10\Driver\

    Best Regards

    Erwan

    2 replies

    Erwan YVIN
    Erwan YVINBest answer
    ST Employee
    June 28, 2019

    Hello , Could you check your device manager ?

    You should see PLS USB JTAG


    if not , install the drivers located in

    c:\Program Files (x86)\pls\UDE 4.10\Driver\

    Best Regards

    Erwan

    prashanth.mohan22
    prashanth.mohan22Author
    Associate III
    July 15, 2019

    Hi @Erwan YVIN​ ,

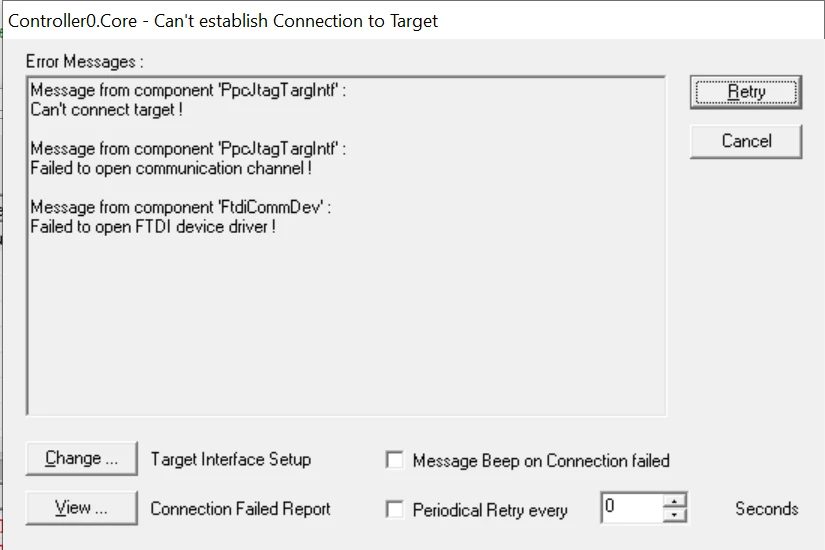

    I've connected the device to my PC. The lights are glowing on the board, but the PC is not detecting it as USB and hence no COM ports are assigned to it. Is it a problem with the SPC560B-DIS hardware?

    My other SPC560B-DIS board is working fine. Help me resolve this issue.

    Regards,

    Prashanth
