Problem in Writing to EED-EEPROM

[Santhamurthy R]

Posted on March 20, 2017 at 15:47

Hello All,

 I am working on SPC560Bxx Discovery board using SPC5studio version 5.2.1.

EED test code for SPC560B- Discovery RLA is working as described in ''readme'' file.

As per my understanding FSL_WriteEeprom writes 10 records each 4 bytes,

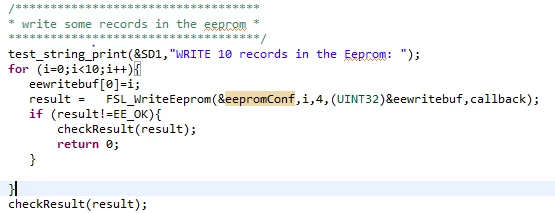

I would like to write one byte at a time in a record in this case how to increment to second byte address of the record. As per below testcode, the second argument of FSL_WriteEeprom is data ID(nothing but record address. If I want to write single byte per iteration what could be the value need to be passed as a second argument to FSL_WriteEeprom.

Thanks in Advance

Regards,

R.Santhamurthy

[Erwan YVIN]

Posted on March 21, 2017 at 10:43

Cf Answer in

https://community.st.com/0D50X00009XkYK3SAN
