Regarding Pin information and Pin configuration

Forum|Forum|21 days ago
April 23, 2026
3 replies
161 views

1. Where can I find pin function list for SPC582B60E1CD00X MCU.

Package: eTQFP64

2. Suggestion on tool used to configure pins according to application and generate code.

SPC5 Automotive MCUs

M

mfgkw

Associate II

Hi,

Your question is a bit surprising, since such a controller is used only in an environment where the question does not arise. If there is already a decision to use exactly this MCU then I assume someone has an idea about the developing tools.

This forum focuses on STM32 with ARM Cortex processors. But you ask for a PowerPc based MCU (e200z). I am not aware of a more specific forum or community for this.

But anyway: a starting point is the documentation available at https://www.st.com/en/automotive-microcontrollers/spc582b60e1.html

Here you should find all documentation.

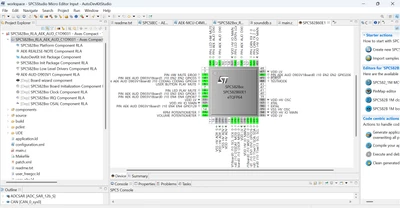

Rearding a development environment there should be a SPC5Studio available from st.com, which includes an eclipse based IDE and gcc cross compiler.

S

sanket471Author

Associate II

Thank you I got the IO definition sheet. IO Definition sheet for SPC582B60E1CD00X 64 pin MCU which i was looking for.
Can you guide on how to decide pins for a pin. I am working on AVAS system design. Ex. If i want to assign I2c, I2s, SPI to MCU pins.

Andrew Neil

Super User

@sanket471 wrote:
I am working on AVAS system design. E

You mean an Acoustic Vehicle Alerting System ?

As previously noted, That's a safety-critical automotive system - not really suitable for a novice project!

Surely, you must have someone supervising you who can help with these basic questions?

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.

mƎALLEm

Technical Moderator

SPC5 is an automotive product.

The question needs to be asked in "Automotive MCUs" forum board.

The post will be moved then ..
