SPC5 Studio IDE Debug tools

[Gary Wang]

Posted on September 29, 2017 at 08:22

which debug tools can be support when use SPC5 Studio?

Whether SPC5 Studio IDE support IC5000 (debug tool) or not? or only support PLS-UDESTK tool ?

[Erwan YVIN]

Posted on September 29, 2017 at 09:10

Hello Gary ,

We do not support officially

IC5000 (debug tool)

we support only

PLS-UDESTK tool

 on our differents Test Application

Anyway , SPC5Studio is a Luna Eclipse based IDE with CDT installed

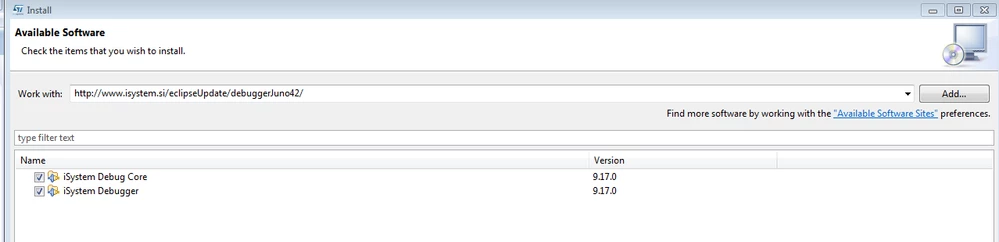

you can install it on the update site and create an associated ISYSTEM Debug Configuration

https://community.st.com/external-link.jspa?url=http%3A%2F%2Fwww.isystem.si%2FeclipseUpdate%2FdebuggerJuno42%2F

     Best regards

                 Erwan

[Gary Wang]

Posted on September 29, 2017 at 09:53

Hello Erwan;

Thanks for your quick reply,

i have another question, Besides SPC5 Studio IDE, what's IDE software PLS-UDESTK  can also be support? whether ST have dedicated programming software supported by PLS-UDESTK ?

[Erwan YVIN]

Posted on September 29, 2017 at 12:03

In fact , in each test application , we add a debug.wsx (UDE Workspace) compliant for  PLS UDE

http://www.st.com/en/development-tools/spc5-udestk.html



 Best Regards

         Erwan
